TEXTILE TEST EQUIPMENT

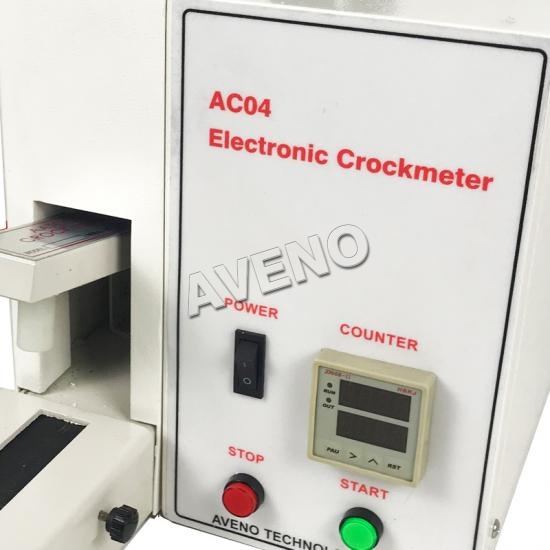

AC04 AATCC Electronic Crockmeter

AATCC Electronic Crockmeter mainly consists of the control system and friction system, fix sample by sample holder on the end of the base sticking a sandpaper, put abrasion head with a white cotton cloth on the sample. After rubbing the fixed number of times, observe sample and evaluate the coloring degree of white cotton cloth comparing with gray card, make judgments to the stain of the fabric sample or the stability of surface coating provide reference data for the assessment and selection of materials.


  • Brand:

    AVENO
  • Item NO.:

    AC04
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    10-20days
  • Product Detail

Application

AATCC Electronic Crockmeter mainly consists of the control system and friction system, fix sample by sample holder on the end of the base sticking a sandpaper, put abrasion head with a white cotton cloth on the sample. After rubbing the fixed number of times, observe sample and evaluate the coloring degree of white cotton cloth comparing with gray card, make judgments to the stain of the fabric sample or the stability of surface coating provide reference data for the assessment and selection of materials. This apparatus apply to yarn, yarn-dyed, dyeing and printing of textiles and toy products etc. or all of its internal fabric.


Standards

BS 1006-D02, BS 4655, ISO 105 x 12/D02, AATCC 8/165, ASTM D6279, JIS L0849(type1)


Dimensions & Weight

Model

AC04 AATCC Electronic Crockmeter

Dimensions

28*61*30cm

Weight

10kg


Key Specification

Model

AC04 AATCC Electronic Crockmeter

Rubbing head diameter

16mm

Test speed

60±2r/min

Vertical pressure

9N

Rubbing head track

104±3mm

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AC04 AATCC Electronic Crockmeter

AATCC rubbing cloth

1box

Sand paper

2pcs

Clamp Rings

2pcs

Power line

1pc


Option Accessories

Model

AC04 AATCC Electronic Crockmeter

1

Gray scale for color staining

AVENO Related Products:

1.AC04-2-AATCC Electronic Crockmeter

Product links:https://www.garmenttester.com/ac04-2-rubbing-fastnes-tester-crockmeter_p35.html

AATCC Electronic Crockmeter

2.AC04-3-AATCC Electronic Crockmeter

Product links: https://www.garmenttester.com/ac04-3-aatcc-electronic-crockmeter_p64.html

AATCC Electronic Crockmeter
