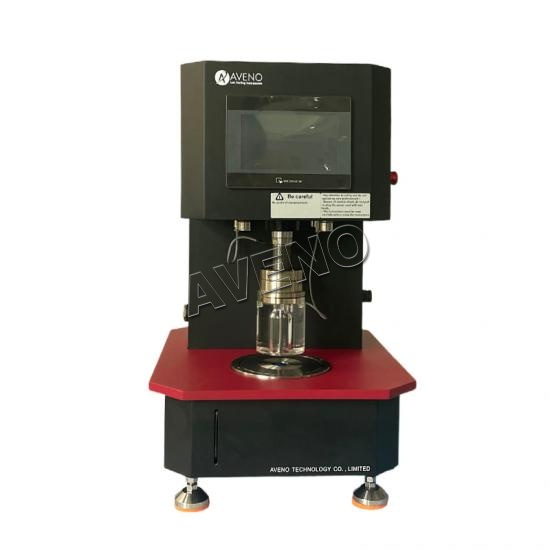

AG10 Fabric Bursting Strength Tester

Bursting Strength Tester is suitable for various textiles, non-woven fabrics, leather and other materials, when the force is applied in all directions of warp and weft at the same time (elastic diaphragm method), the performance measurement of expansion force and degree of expansion.
  • Brand:

    AVENO
  • Item NO.:

    AG10
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-10 days
  • Product Detail

Application

Bursting Strength Tester is suitable for various textiles, non-woven fabrics, leather and other materials, when the force is applied in all directions of warp and weft at the same time (elastic diaphragm method), the performance measurement of expansion force and degree of expansion.

Feature

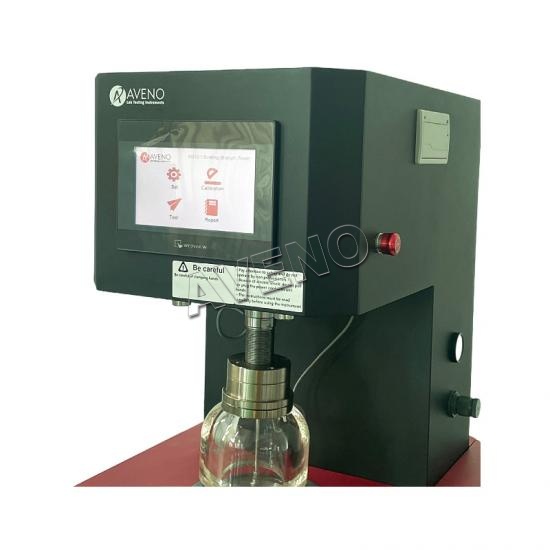

1. Touch screen control, the interface is simple and easy to understand, the operation is simple and intuitive, and the touch is sensitive.

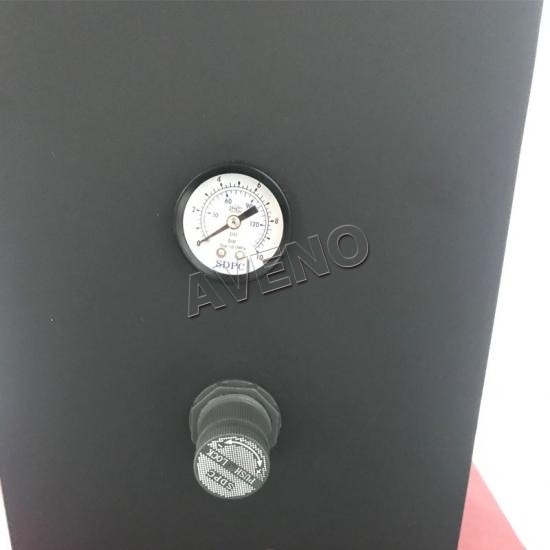

2. Pneumatic clamping, even clamping, and adjustable clamp pressure, to avoid sample slippage or damage, easy to use.

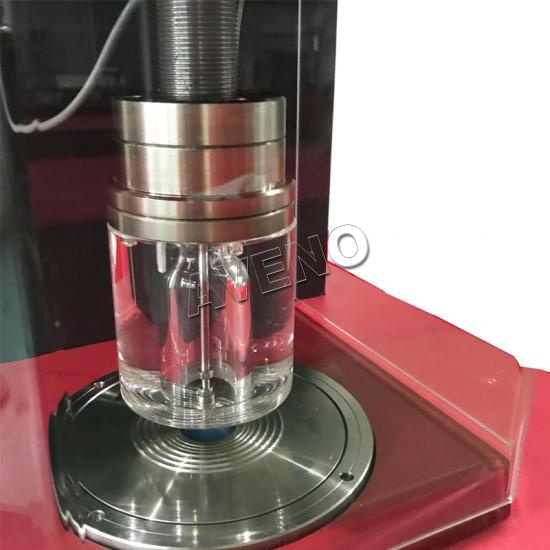

3. The test cover is made of highly transparent plexiglass, with built-in LED lighting, which can clearly observe the test process of the sample.

4. Automatic induction blasting system, sensitive and reliable.

5. External plexiglass cover is installed to prevent pinch injury and safer use.

6. It adopts AC servo drive system and synchronous belt wheel transmission. The instrument has low noise, wide speed range and high precision.

7. Adopting high-speed AD and processor, high sampling frequency and high test accuracy.

8. Four test methods: constant speed burst, constant pressure, constant expansion and timing.

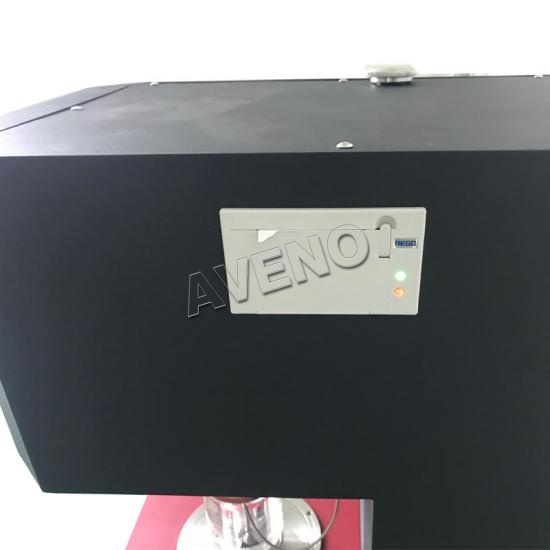

9. The instrument comes with a thermal printer that can print reports directly, and supports online work with professional computer software.


Standards

ASTM3786-06, ISO2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206, FZ/T60019, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.


Dimensions & Weight

Model

AG10-Bursting Strength Tester

Dimensions

55*45*70cm

Weight

125Kg


Key Specification

Model

AG10-1

AG10-2

Test range

2.00Mpa

10.00Mpa

Min division value

0.001Mpa

0.003Mpa

Test area

7.3cm2(φ30.5mm), 10cm2(φ35.7mm),

50cm2(φ79.8mm), 100cm2(φ112.8mm),

Max expansion height

75±0.02mm

Pressure speed

20-600ml/min

Test method

Constant rate bursting

Constant expansion

Constant pressure

Constant time bursting

Pressure units

Kpa, kg/cm2, bar, lb/in2

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AG10-Bursting Strength Tester

7.3cm2 test set (φ30.5mm)

1set

50cm2 test set (φ79.8mm)

1set

Wrench

1pc

Calibration plate

1pc

Rubber diaphragm

1pc

English operate software

1set

Cable to connect with computer

1pc
