TEXTILE TEST EQUIPMENT

AG20 Spray Rating Tester

Spray Rating Tester is used to determine the surface wetting resistance of fabrics.


  • Brand:

    AVENO
  • Item NO.:

    AG20
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3 days
  • Product Detail

Application

Spray Rating Tester is used to determine the surface wetting resistance of fabrics. Comprising a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45 degrees and 150mm below the nozzle.


Standards

 AATCC 22, ISO 4920, JIS L1092, GB/T 4745


Dimension & Weight

Model

AG20 Spray Rating Tester

Dimensions

50×40×50cm

Weight

5kg


     Key Specification

Model

AG20 Spray Rating Tester

Glass funnel

150×150 (V=500mL)

Laying angle of specimen

45degree

The distance between nozzle and center of specimen

150mm

Sample rack diameter

150mm

Matching measuring cup

250ml


Standard Accessories

Model

AG20 Spray Rating Tester

Drip tray

1pc

Measuring glass

1pc

Nozzle

1pc

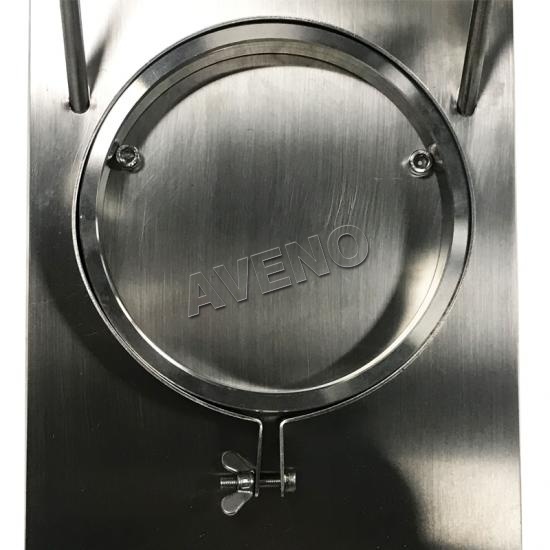

Sample fixture

1pc
