The zipper fatigue tester is used to test the reciprocating motion of various zippers under the specified compliance and specified number of times. The zipper tester is suitable for CNS -1083, BS 3084, QB/T2171, 2172, 2173, SATRA TM50, DIN EN16732, etc.
Brand:
AVENOItem NO.:
AG08BPayment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7 daysApplication

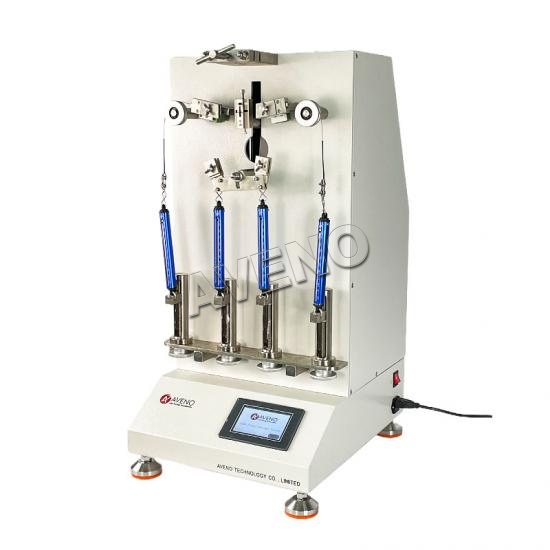

The zipper fatigue tester is used to test the reciprocating motion of various zippers under the specified compliance and specified number of times. The zipper tester is suitable for CNS -1083, BS 3084, QB/T2171, 2172, 2173, SATRA TM50, DIN EN16732, etc.
The zipper fatigue tester uses a touch screen for display, with a simple and easy-to-understand interface, easy to operate and sensitive to touch. The appearance of the fuselage is simple and elegant.
Standards
CNS -1083, BS 3084, QB/T2171, 2172, 2173. SATRA TM50, DIN EN16732
Dimension & Weight
|
Model |
Zipper Fatigue Tester |
|
Dimensions |
45 cm * 35 cm * 80cm |
|
Weight |
60 kg |
Key Specification
|
Model |
Zipper Fatigue Tester |
|
Control mode |
Touch screen control |
|
Reciprocating speed |
30cycles/min |
|
Gripping device width |
25mm |
|
Sample angle during test |
Open 60°, Close 30° |
|
Reciprocating stroke |
82.5mm |
|
Reciprocating speed |
30 cycles/min |
|
Reciprocating travel |
75mm |
|
Power Supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
Zipper Fatigue Tester |
|
Load weight |
9N*2pcs,8N*2pcs,5N,4N*2pcs,3*2pcs, 6N*4pcs |
|
Inner hexagon wrench |
1pc |
|
Power line |
1pc |
