TEXTILE TEST EQUIPMENT

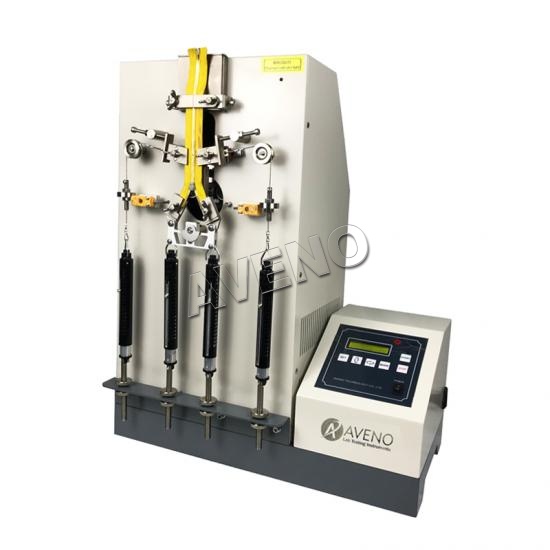

AG08 Zipper Fatigue Tester

Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not.


  • Brand:

    AVENO
  • Item NO.:

    AG08
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7 days
  • Product Detail

Application

Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not, test for zipper in a tension action of lateral and longitudinal, it could be tested its bearing ability in reciprocating motion for a regulation time.

Standards

CNS -1083, BS 3084, QB/T2171, 2172, 2173.


Principle

Clamped test zipper ends in the upper and lower fixture, horizontal and vertical exert a certain tension, pull the zipper head use constant speed made zipper do open and close action, to check whether the zipper is damaged after a certain number of times.


Dimension & Weight

Model

AG08 Zipper Fatigue Tester

Dimension

66 cm*32.5 cm*57.3 cm

Weight

65 kg


Key Specification

Model

AG08 Zipper Fatigue Tester

Reciprocating speed

30cycles/min

Gripping device width

25mm

Sample angle during test

Open 60°, Close 30°

Reciprocating stroke

82.5mm

Reciprocating speed

30 cycles/min

Reciprocating travel

75mm

Power Supply

AC220V, 50/60HZ


Standard Accessories

Model

AG08 Zipper Fatigue Tester

Angle gauge

2pc (60°and 30°)

Position pieces

8pcs

Inner hexagon wrench

1pc

Power line

1pc
