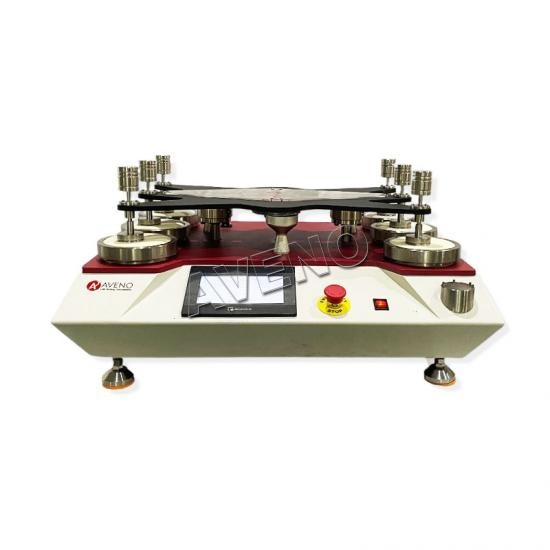

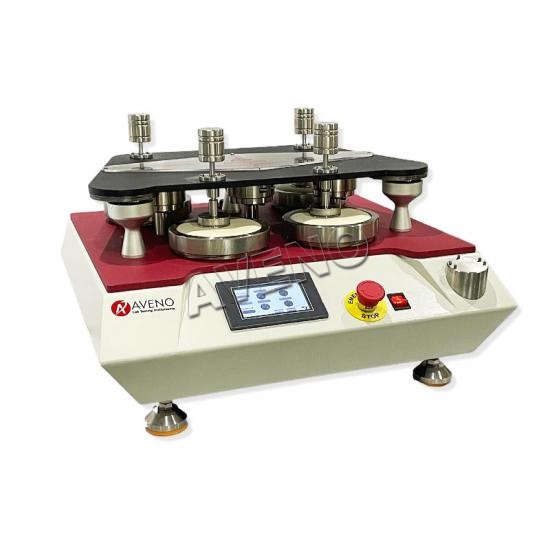

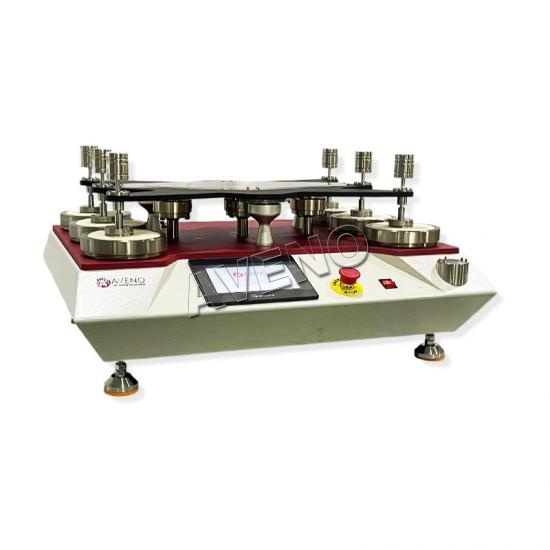

AG04 Fabric Tester Martindale Abrasion Tester

Martindale Abrasion Tester is suitable for the test of the degree of abrasion and pilling of fabrics. It is also suitable for fabric abrasion resistance test. Martindale Abrasion Tester is widely used in textile testing.

  • Brand:

    AVENO
  • Item NO.:

    AG04
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

Martindale abrasion tester refers to testing textile products according to the Martindale method standard system and its relationship, and through this test to test the wear resistance characteristics of fabrics, and wear resistance is an important indicator of the quality of textile products. It directly affects the durability and use effect of the product. Abrasion resistance refers to the resistance to wear during repeated friction between fabrics or with other materials. The machine used for fabric abrasion testing is the Martindale Abrasion Tester.



Standards

ASTM D4966, 4970 ISO12945.2, 12947.1, ISO 5470.2, DIN 53863, JIS L1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775, FZ/T 20020, BS3424/5690, EN 388.


Feature of Martindale Abrasion Tester

1. The heavy hammer and key components are made of 304 stainless steel, which is beautiful in appearance and durable.

2. The pressure plate is made of special aluminum alloy to ensure long-term use without deformation.

3. Needle roller bearing connection drive to ensure no error in each workbench test

4. Multiple sets of running programs and multiple counting methods can be preset


Dimension & Weight

Model

AG04 Martindale Abrasion and Pilling Tester

Test position

4

6

8

9

Dimension

60*55*41cm

88*61*41cm

90*62*41cm

90*62*41cm

Weight

100kg

130kg

145kg

155kg


Key Specification

Model

AG04 Martindale Abrasion and Pilling Tester

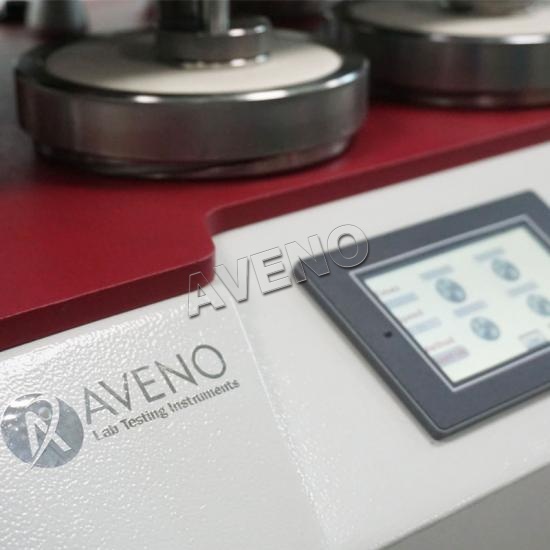

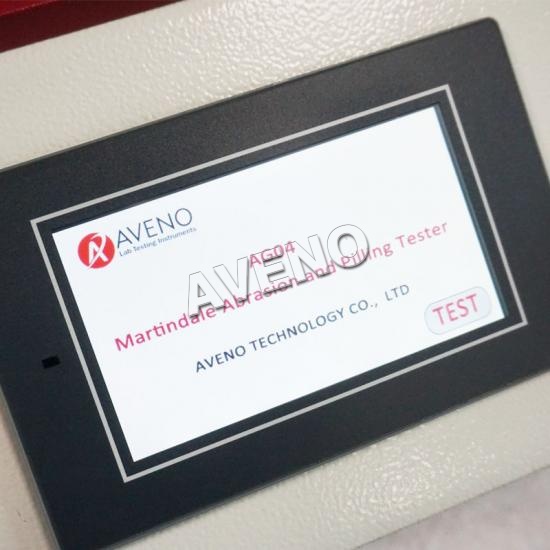

Control mode

PLC control with touch screen display

Counter range

0~999999 times

The maximum dynamic range

Cross range 60.5±0.5mm   Direction 24±0.5mm

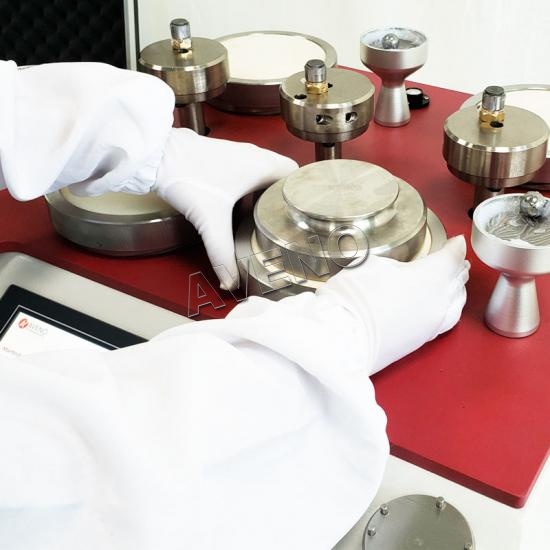

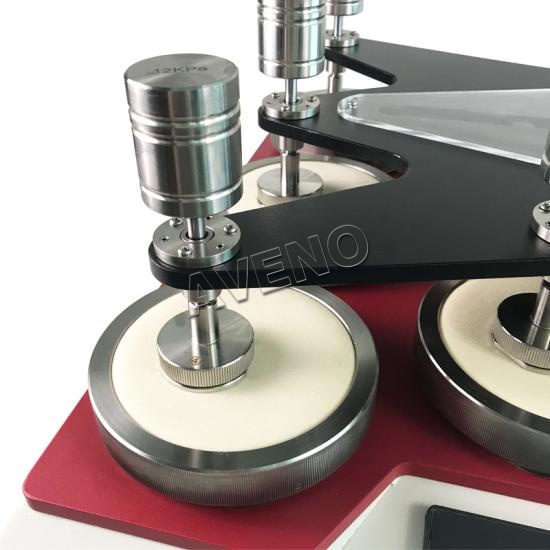

Pressure Weight

a Holder

b Cloth sample weight

c Furniture parts sample weight

d B type clamp

e Stainless steel butterfly

198 ±2g
      395 ±2g

594 ±2g

155 ±1 g

260±1g

Rubbing Diameter

a Rubbing Head

b Rubbing Head

A: 198g friction head Φ28.65±0.05mm, Pressurized gravity 12Kpa

B: 155g friction head Φ90±0.10mm, Pressurized gravity 9Kpa

Friction relative speed

50±2r/min, can be adjust

sample pressing hammer weight

2385±10g

Power Supply

AC220V, 50/60HZ


Standard Accessories

Model

AG04 Martindale Abrasion and Pilling Tester

Abrasion Weight and Holder

1 Set

Pilling Weight and Holder

1 Set

Standard Abradents Fabric

2 pcs/ head

Standard Backing Foam

2 pcs/head

Standard Woven Felt Discs 140mm

2 pcs/ head

Standard Woven Felt Discs 90mm

2 pcs/ head

Sample cutting template

(Φ38/90/140mm)

each of 1pc

Pressing Weight

1pc

Bowl shape sample loader

1pc

Steel ball

3pcs

Power line

1pc

English manual

1pc

Certificate of quality

1pc


AVENO Related Products

1. AG05 ICI Pilling and Snagging Tester


ICI Pilling and Snagging Tester


https://www.garmenttester.com/ag05-ici-pilling-and-snagging-tester_p13.html

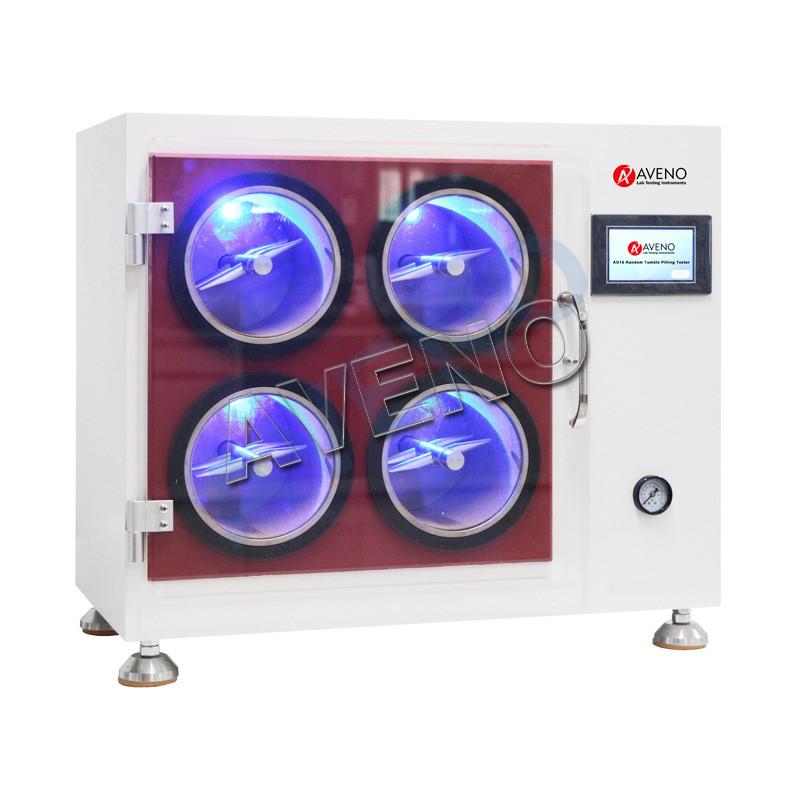

2. AG15 Random Tumble Pilling Tester

Random Tumble Pilling Tester

https://www.garmenttester.com/ag15-fabric-random-tumble-pilling-tester_p33.html

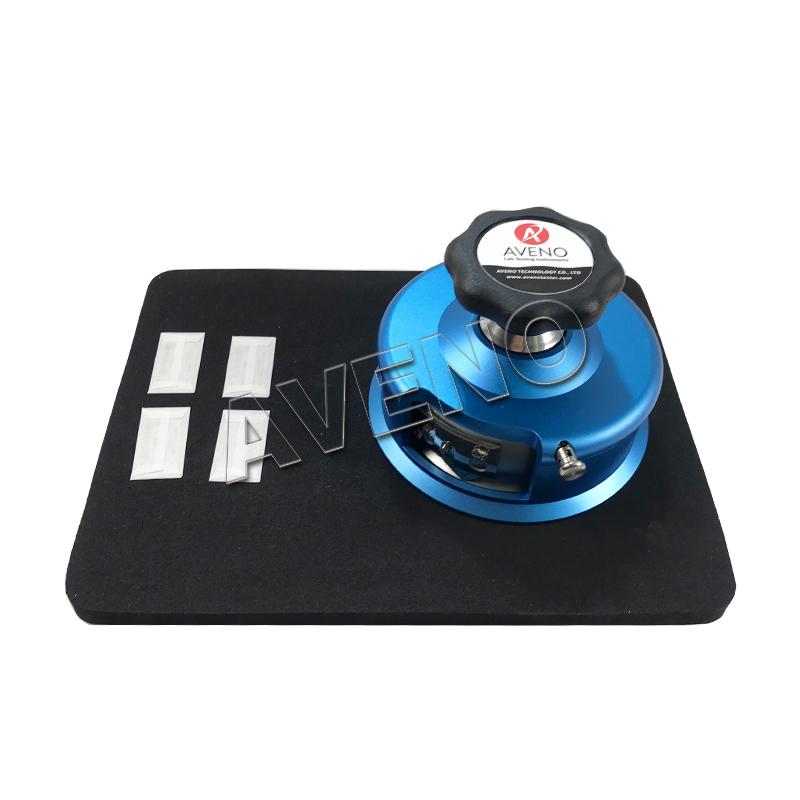

3. AG26 100CM² Sample Cutter

100CM² Sample Cutter

https://www.garmenttester.com/ag26-gsm-cutter_p29.html

Leave A Message
Dear friends, please leave us a message, our team will reply you within 24hours, we are happy to serve you.
Related Products
Hydrostatic Head Tester
AG17B Hydrostatic Head Tester

Hydrostatic Head Tester is used to measure the impermeability of various fabrics that have undergone water-repellent treatment

Zipper Fatigue Tester
AG08 Zipper Fatigue Tester

Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not.

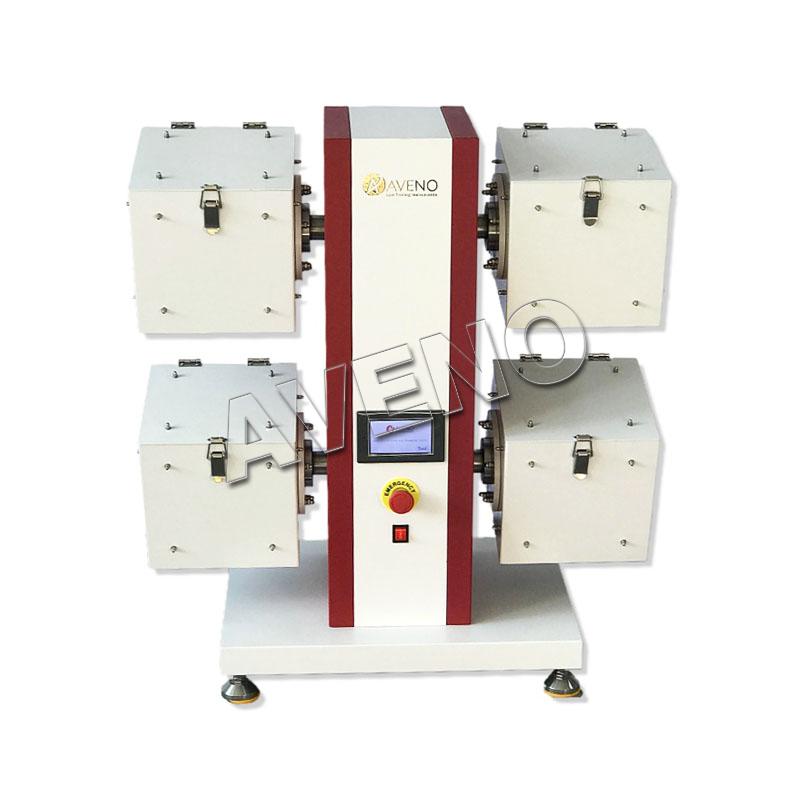

ICI Pilling and Snagging Tester
