TEXTILE TEST EQUIPMENT

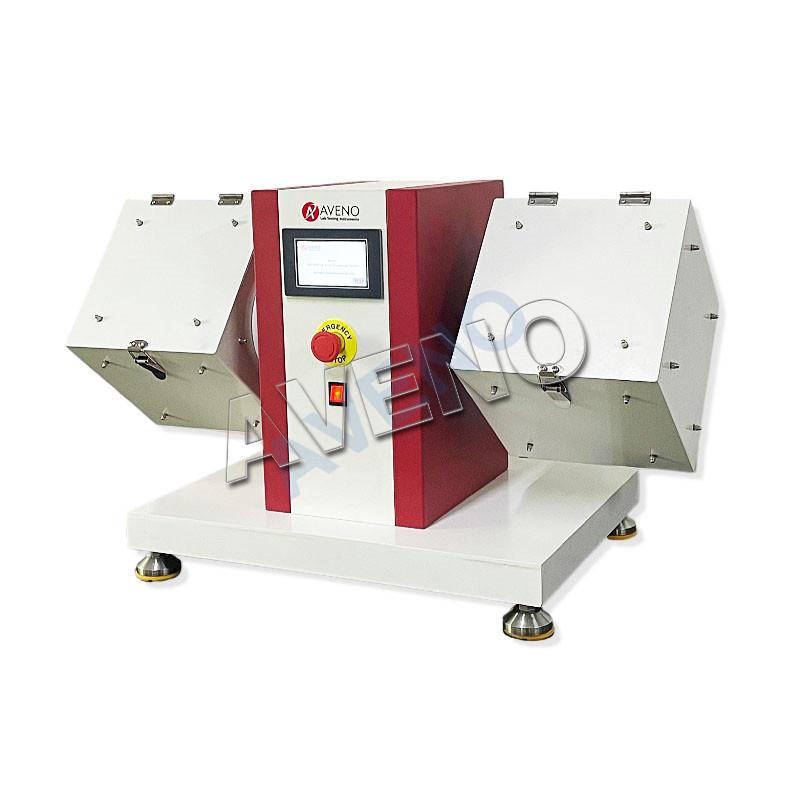

AG15 Fabric Random Tumble Pilling Tester

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics.
  • Brand:

    AVENO
  • Item NO.:

    AG15
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

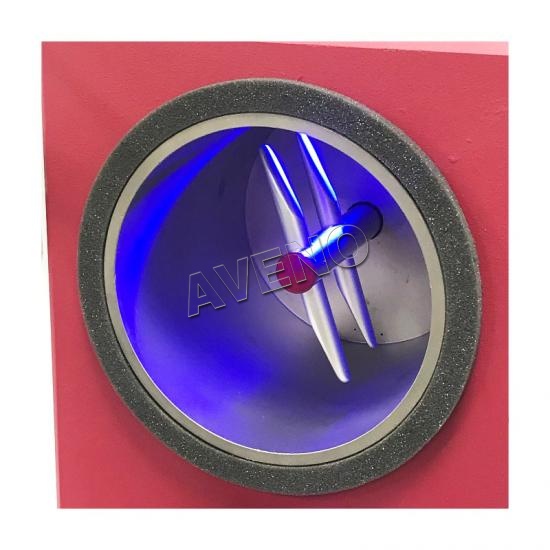

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics. Stainless steel impellers rotate within individually lit aluminum chambers constantly tumbling test fabrics against cork liners for a pre-determined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action.

Standards

ISO 12945.3, ASTM D3512, ASTM D1375, JIS L1076


Dimensions & Weight

Model

AG15-1

AG15-2

Dimensions

46×40×68cm

66×40×68cm

Weight

55kg

75kg


Key Specification

Model

AG15-1

AG15-2

Working position

2position

4position

Tumble diameter

146mm

Tumble length

152mm

Cork Liner dimension

452×146×1.5mm (L×W×H)

Rotation speed

1200r/min

Number of samples

3 in each chamber

Stirring rod length

121mm

Specimen size

105±2mm×105±2mm

Air compression

0.014-0.021Mpa


Standard Accessories

Model

AG15-Random Tumble Pilling Tester

Sample template

1set

Power line

1pc


Option Accessories

Model

AG15-Random Tumble Pilling Tester

1

Cotton sliver

2

Cork lining

3

Standard photograph


AVENO Related Products

AG04 Martindale Abrasion and Pilling Tester


https://www.garmenttester.com/ag04-fabric-tester-martindale-abrasion-tester_p9.html

2.AG05 ICI Pilling and Snagging Tester

ICI Pilling and Snagging Tester

https://www.garmenttester.com/ag05-ici-pilling-and-snagging-tester_p13.html

Leave A Message
Dear friends, please leave us a message, our team will reply you within 24hours, we are happy to serve you.
Related Products

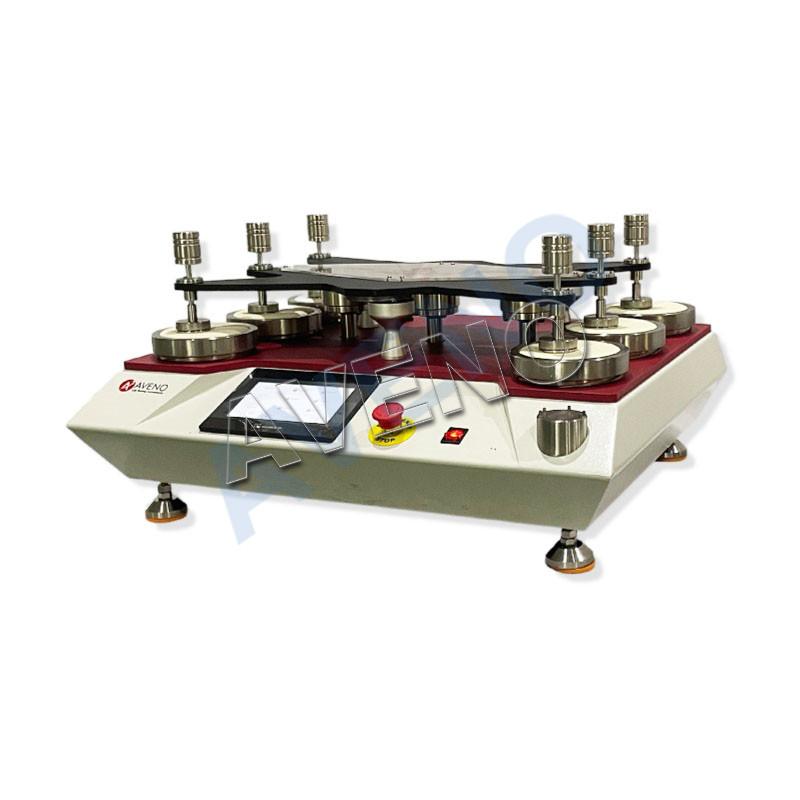

Martindale Abrasion Tester
