TEXTILE TEST EQUIPMENT

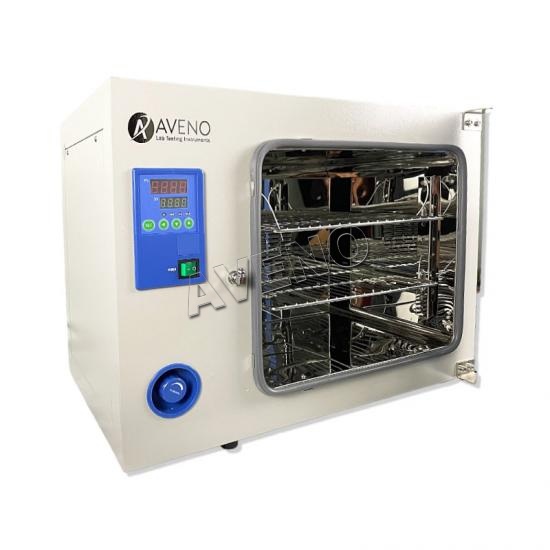

AC12 Laboratory Precision Drying Oven

Laboratory Precision Drying Oven is widely used in material heating and dying testing. Apply to the drying, braking, wax melting and sterilization of the articles in industrial and mining enterprises, colleges and universities, scientific research and medical units, labs, etc.


  • Brand:

    AVENO
  • Item NO.:

    AC12
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3 days
  • Product Detail

Application

Laboratory Precision Drying Oven is widely used in material heating and dying testing.
Apply to the drying, braking, wax melting and sterilization of the articles in industrial and mining enterprises, colleges and universities, scientific research and medical units, labs, etc.


Features

1. Use synthetic Silicon Seal Strip, can hot operation over a long period of time, have long service life.

2. All of them are made of high quality cold rolled steel plate, surface with electrostatic spray molding, ensure safety.

3. Large screen liquid crystal display, multi-group data one screen display.

4. Menu type operating interface easy to understand, easy to operate.

5. With Air duct circulation system, automatic discharge the water vapor inside the tank.

6. Adopt over-temperature deviation protection, microcomputer PID temperature Controller, with timing function, temperature control Accurately and reliable.


Key Specification

Model

AC12-Precision Drying Oven

AC12-1

AC12-2

AC12-3

AC12-4

AC12-5

AC12-6

Temperature range

RT+10280±1

Power

550W

850W

1100W

1550W

2050W

2500W

Inter dimension
W×D×H(mm)

250×260×250

340×330×320

420×350×390

450×400×450

550×450×550

600×595×650

Outline dimension
W×D×H(mm)

535×480×430

625×540×500

705×610×530

735×615×630

835×670×730

880×800×830

Capacity

16L

30L

50L

80L

136L

220L

Carrier bracket

2pcs

Timer Range

19999min


Standard Accessories

Model

AC12-Laboratory Precision Drying Oven

Stainless steel shelf

1set
