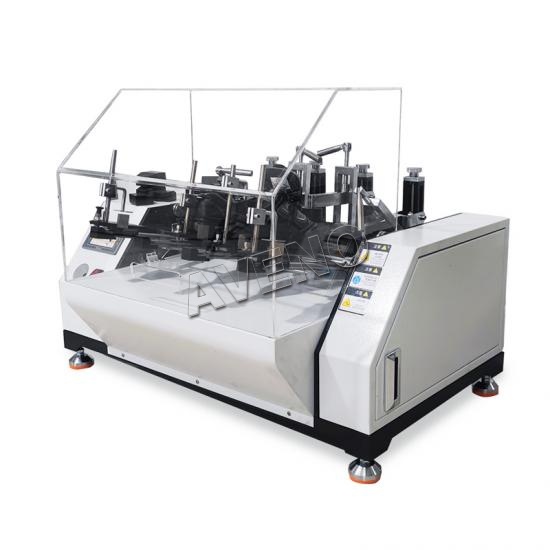

AF27 SATRA TM92 Whole Shoes Flexing Tester

Whole Shoes Flexing Tester is applicable to testing the resistance to repeated flexing of all types of footwear.

  • Brand:

    AVENO
  • Item NO.:

    AF27
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-10 days
  • Product Detail

Application

Whole Shoes Flexing Tester is applicable to testing the resistance to repeated flexing of all types of footwear.


Standards

SATRA TM92


Principle

The footwear specimen is repeatedly flexed through a specified angle to simulate walking wearer. After a predetermined number of flexes, the footwear is assessed for fatigue resistance and durability.


Dimensions & Weight

Model

AF27- Whole Shoes Flexing Tester

Dimensions

97*77*70cm

Weight

210kg


Key Specification

Model

AF27-1

AF27-2

Testing position

2

4

Bending angle

0-90°adjustable

Test speed

60300 times/minBending angle 015°

60200 times/minBending angle 050°

60140 times/minBending angle 090°

Counter

LED, 0~99,999,999 can be set

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AF27- Whole Shoes Flexing Tester

Clamp for whole shoe

1set

Clamp for outsole

1set

Cap toe clamp pad

1set

Hexagon spanner

1pc

Power line

1pc
