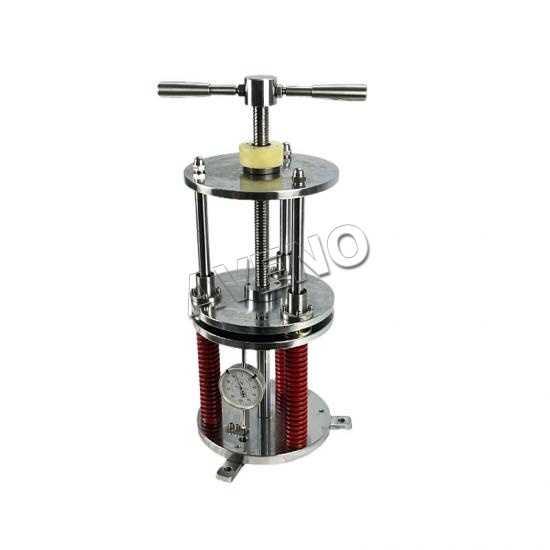

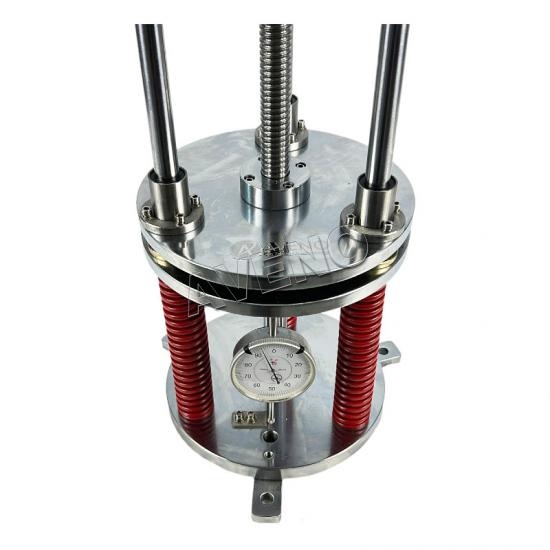

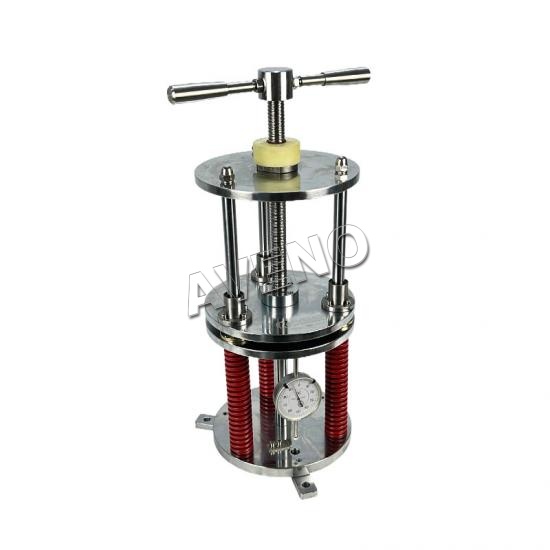

The foam compression rebound tester is used to test the resilience performance of rubber products after withstanding a certain period of time and pressure. Take the standard sample, place it flat on the test plate, sandwich it between two plates, take it out after the specified time, release the test piece and cool it, measure the final center thickness of the test piece, and substitute it into the formula to calculate its compression rebound rate.
Brand:
AVENOItem NO.:
AF30Payment:
T/T, L/CShipping Port:
Xiamen portLead Time：
3-7days
Application
The foam compression rebound tester is used to test the resilience performance of rubber products after withstanding a certain period of time and pressure. Take the standard sample, place it flat on the test plate, sandwich it between two plates, take it out after the specified time, release the test piece and cool it, measure the final center thickness of the test piece, and substitute it into the formula to calculate its compression rebound rate.
Principle
The foam compression rebound tester is suitable for various types of foam or soft
soles, such as EVA, foam PU, foam rubber and other materials, to maintain the
rebound performance after compression for a certain period of time under the
action of specified external force.
Standards
ASTM D395, SATRA TM 64
Dimensions & Weight
|
Model |
AF30 Foam Compression Rebound Tester |
|
Dimensions |
35*35*72CM |
|
Weight |
40kg |
Key Specification
|
Model |
AF30 Foam Compression Rebound Tester |
|
Dial indicator |
0.01-50mm |
|
Press plates |
9pcs φ=97mm h=3mm |
|
effective trip |
≥100mm |
|
Sample size |
Method 1: foam Ø29.0 mm, Non-foaming material Ø14.5 mm Method 2: foam 25.4 × 25.4 mm; Non-foaming material Ø12.7 mm |
