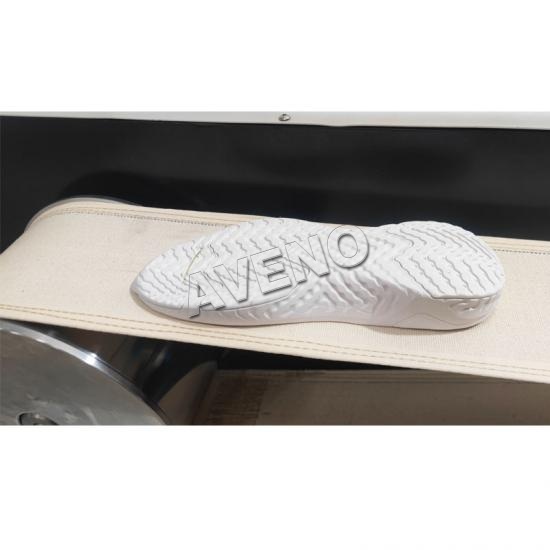

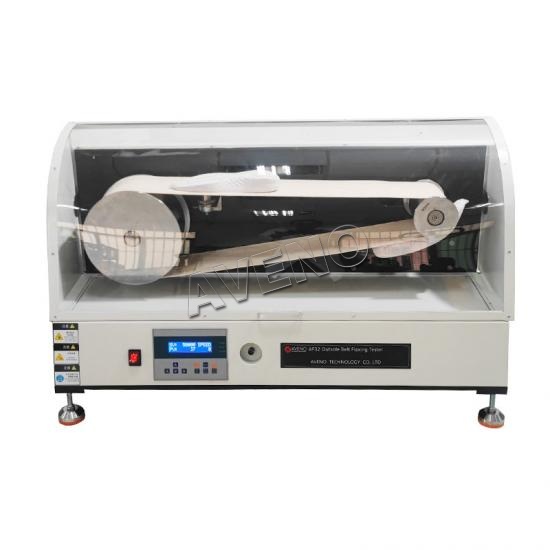

The SATRA TM 133 Outsole Belt Flexing Tester is used to observe whether the sole test piece has cracks after a certain number of bends and how fast the cracks grow after the cracks occur, so as to evaluate the bending resistance of the soles.
Brand:
AVENOItem NO.:
AF32Payment:
T/T, L/CShipping Port:
Xiamen portLead Time：
3-7days
Application
The SATRA TM 133 Outsole Belt Flexing Tester is used to observe whether the sole test piece has cracks after a certain number of bends and how fast the cracks grow after the cracks occur, so as to evaluate the bending resistance of the soles.
Standards
SATRA TM133
Dimensions & Weight
|
Model |
AF32 SATRA TM 133 Outsole Belt Flexing Tester |
|
Dimensions |
1290×750×700 mm |
|
Weight |
170kg |
Key Specification
|
Model |
AF32 SATRA TM 133 Outsole Belt Flexing Tester |
|
Test position |
Can test 6pc of sole at the same time |
|
Cavas belt size |
Length 1930±50mm, width 140±5mm |
|
Cavas belt speed |
90±8 cycles/min |
|
Driven roller diameter |
Center diameter 225±5 mm, Ends diameter 170±20 mm |
|
Driven roller speed |
247±20 cycles/min |
|
Free roller diameter |
A.Center diameter 60±0.5 mm, Ends diameter 57±1 mm B.Center diameter 90±0.5 mm, Ends diameter 87±1 mm C.Center diameter 120±0.5 mm, Ends diameter 117±1 mm |
|
Counter |
LCD, 0~999，999 |
|
Power supply |
AC220V, 50/60HZ |
