Single Yarn Strength Tester is designed and manufactured specially by our company in accordance with single yarn test method, ISO and national standard and combined the characteristics of textile industry.
Brand:
AVENOItem NO.:
AY05Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7 daysApplication
Single Yarn Strength Tester is designed and manufactured specially by our company in accordance with single yarn test method, ISO and national standard and combined the characteristics of textile industry.
Standards
ISO2062, ASTM D2256, GB/T14344, GB/T3916
Test methods
Feature
Using high-precision, high-rate force measurement system, the test data is accurate. The use of precision ball screws and high performance stepper motors form a low noise, smooth drive system.
Dimensions & Weight
|
Model |
AY05 Single Yarn Strength Tester |
|
Dimensions |
60×35×110cm (L×W×H) |
|
Weight |
80kg |
Model
AY05 Single Yarn Strength
Tester

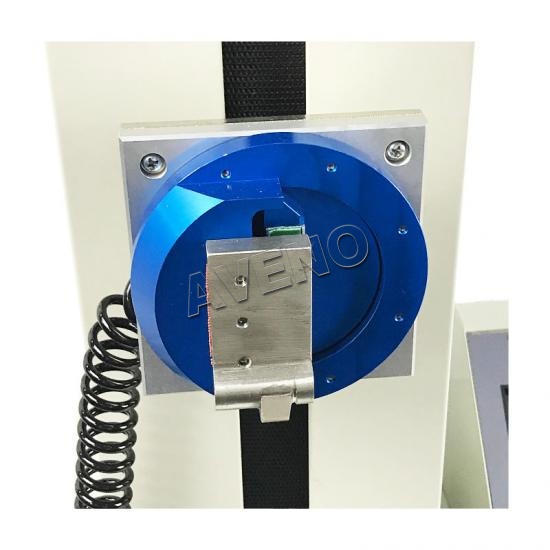

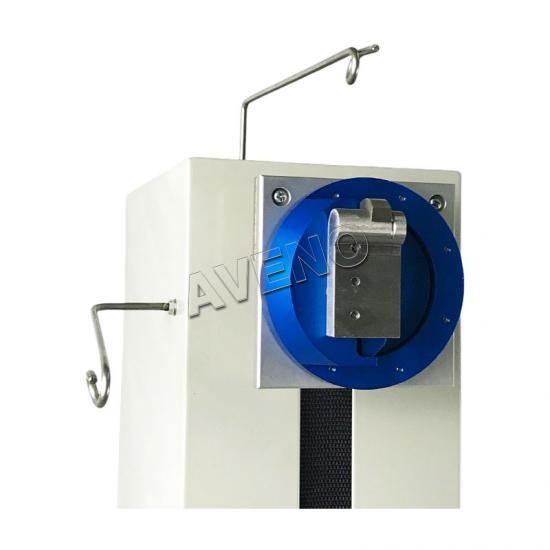

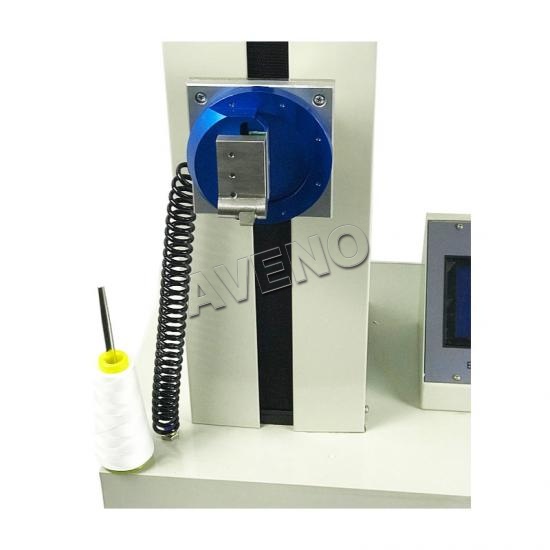

Clamp
method
Manual clamp, pneumatic
clamp (optional)

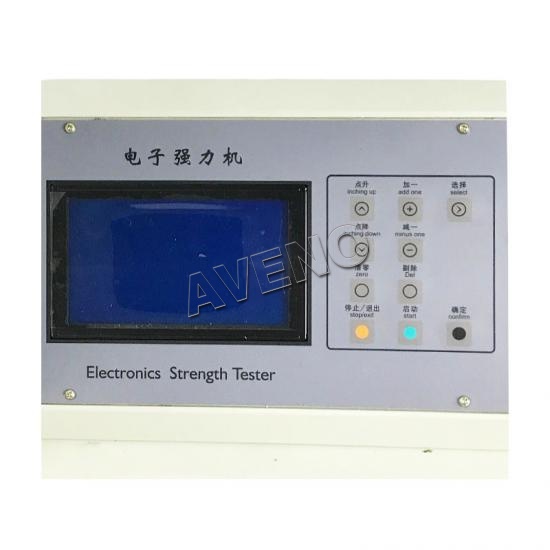

Display
mode
LCD display
Strength
testing range
0~10000 cN, ±1%
Test
speed
20~1200mm/min, can be
set
Tensile
speed accuracy
±2%
Clamping
specimen length
50-500mm (optional)
Power
Supply
AC220V, 50/60HZ
Standard Accessories
Model
AY05 Single Yarn Strength
Tester
Griper
1set
Load cell
1set
Power line
1pc
