AY12B Automatic Yarn And Sliver Evenness Tester

Automatic Yarn And Sliver Evenness Tester is designed for measuring and analyzing unevenness of filaments,evaluating quality of filaments and guiding the production of filaments.

  • Brand:

    AVENO
  • Item NO.:

    AY12B
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7 days
  • Product Detail

Application

Automatic Yarn And Sliver Evenness Tester is designed for measuring and analyzing unevenness of filaments,evaluating quality of filaments and guiding the production of filaments. Since the instrument uses the advanced digital processing, hardware and software micro-processing technology and automatic control technique, it can measure with high efficiency and accuracy, good stability and consistence.


Feature

  1. Optional slub yarn function, can provide stable and detailed quality analysis of irregular slub yarn problems. Optional yarn defect classification function. Optional cloth simulation function.
  2. The uneven curve can be saved, scaled, and the defect position is marked on the uneven curve.
  3. Powerful statistical analysis function, providing annual and monthly product quality level analysis graphics and quality trend graphs, providing a basis for users' scientific management.
  4. Simultaneously test the evenness of yarn sliver, uneven diameter, uneven density, hairiness index H and other indicators, and provide spectrogram, variation-length curve and other graphics.
  5. The test slot is automatically selected, and the detection result is more accurate.
  6. The unique CV-L curve analysis software can realize quantitative analysis of yarn non-periodic unevenness and can be traced back to the production process.
  7. Unique density unevenness detection provides a means for analyzing weak twists and strong weak loops of yarn.
  8. Advanced driving technology to achieve high-speed testing of 800m / min.

Dimensions & Weight

Model

AY12B Automatic Yarn And Sliver Evenness Tester

Dimensions

77*64*116

80*59*89

184*32*25

Weight

211 kg


     Key Specification

Model

AY12B Automatic Yarn And Sliver Evenness Tester

Control mode

Computer control

Test slot

4

Can automatic test 20tube yarns each group

One group can realize two varieties test

Yarn test range

4tex-12ktex

Test speed

4, 8, 25,50,100, 200, 400, 800m/min

Test time

10sec-20min, can be set

CV%, U% test range

0.2%-100%

Variation-length curve

Cutting length 1cm-1500m

Simultaneous output of three types of 12 defect values:

Thin section-30%, -40%, -50%, -60%

Thick section + 35%, + 50%, + 70%, + 100%

Neps + 140%, + 200%, + 280%, + 400%

Spectrogram

170 channels,

wavelength range 1cm-2950m

Linear density distribution diagram

-100% ~ + 100%, + 100% ~ + 400%

DR% value

4 RD%:

DR (1m, + 5%), DR (1m, -5%), DR (20cm, + 35%), DR (20cm, -30%) four-block DR%

Classification of impurities and dust

16 level

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AY12B Automatic Yarn And Sliver Evenness Tester

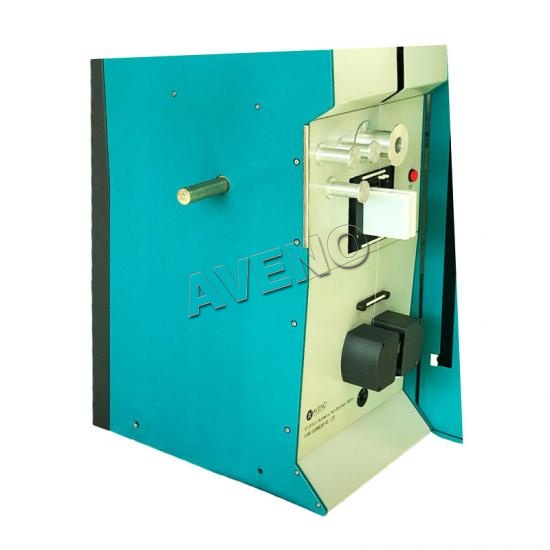

Main machine

1sets

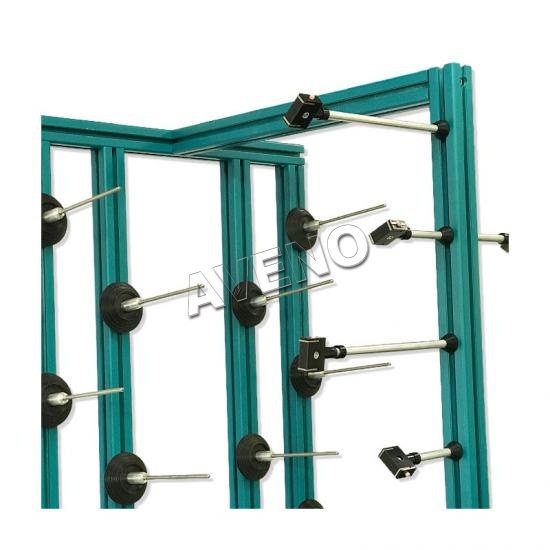

Roving frame

1sets

Spinning frame

1sets

Desk top computer

1sets

Printer

1sets

Workbench

1sets
