TEXTILE TEST EQUIPMENT

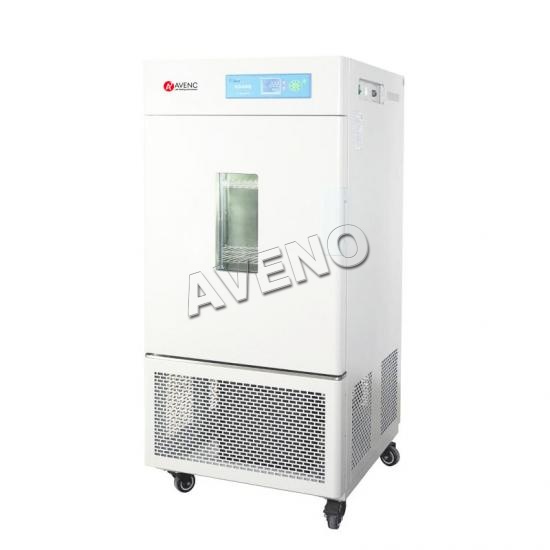

Shoes Thermal Insulation tester AF11

The Shoes Thermal Insulation tester for shoes is specially used to evaluate the thermal insulation performance of various types of shoes at low temperatures.

  • Brand:

    AVENO
  • Item NO.:

    AF11
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

The thermal insulation performance tester for shoes is specially used to evaluate the thermal insulation performance of various types of shoes at low temperatures.


Standards

ISO 20344, GB/T20991


Dimension & Weight

Model

Shoes Thermal Insulation tester

Dimension

2000×780×1000 mm

Weight

280 kg


Key Specification

Model

Shoes Thermal Insulation tester

Temperature range

-30RT, -50RT option

Temperature accuracy

±0.1

Temperature uniformity

±1

Stainess steel ball diameter

ø5 mm

Window

210×35×270 mm, two lattice vacuum

Window lights

P1light, 5 W

Inter size

600×600×550 mm

Power supply

AC220V, 50/60HZ
