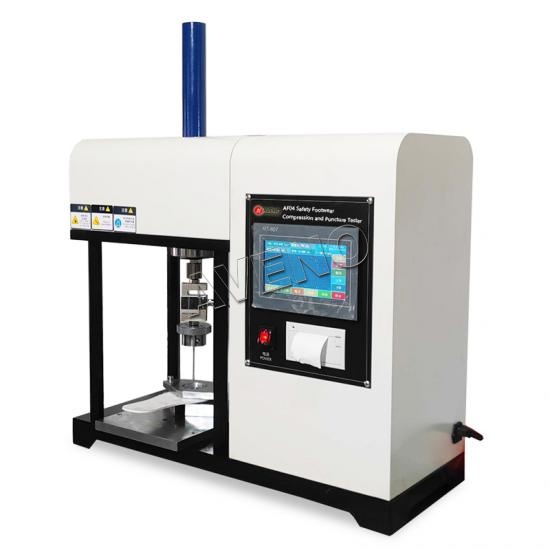

AF04 Safety Footwear Compression and Puncture Tester

Press the toe cap at a constant rate through Safety Footwear Compression and Puncture Tester, until the pressure value reaches the specified value, measure the minimum height of the sculptured clay cylinder in the test toe cap, and use its size to evaluate the safety of the shoe or the compression resistance of the protective shoe toe.

  • Brand:

    AVENO
  • Item NO.:

    AF04
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

A: (Static pressure test) Press the toe cap at a constant rate through Safety Footwear Compression and Puncture Tester, until the pressure value reaches the specified value, measure the minimum height of the sculptured clay cylinder in the test toe cap, and use its size to evaluate the safety of the shoe or the compression resistance of the protective shoe toe.

B: (Puncture test) The piercing nail is driven by Safety Footwear Compression and Puncture Tester to pierce the sole at a certain speed until the sole is completely pierced or reaches a certain specified force, and the maximum force required for the sole to be completely pierced or reaches a certain specification When the strength of the puncture nail is exposed, evaluate the puncture resistance performance of safety shoes with anti-puncture midsole, protective shoes or professional shoes.


Standards

EN 344,388,12568, ISO 20344, GB/T20991, ASTM F2412,2413


Dimension & Weight

Model

AF04 Safety Footwear Compression and Puncture Tester

Dimension

82*33*71cm

Weight

115kg


Key Specification

Model

AF04 Safety Footwear Compression and Puncture Tester

Max capacity

15±0.1KN, 20±0.1KN option

Load resolution

1/10000

Compression speed

5±2 mm/min

Puncture speed

10±3 mm/min

Test speed

5-500 mm/min, the speed can be adjustable

Compression speed:(5±2) mm/min

Puncture speed:(10±3) mm/min

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AF04 Safety Footwear Compression and Puncture Tester

Resist compression griper

1set

Resist puncture griper

1set

Standard plasticene

mold 3sets (20mm, 25mm, 30mm)

Anti-puncture steel needle

5pcs

Hexagon spanner

1set

Plasticene

1pc
