Temperature-controlled Colorimetric Lab Drums is especially suitable for comparison tests for various processes in tanning & leather chemical industries.
Brand:
AVENOItem NO.:
AF57Payment:
T/T, L/CShipping Port:
Xiamen portLead Time：
3-7daysApplication
Temperature-controlled Colorimetric Lab Drums is especially suitable for comparison tests for various processes in tanning & leather chemical industries.
Temperature-controlled Colorimetric Lab Drums consists of two drums, which are in same sizes so that several tests can be conducted simultaneously. The drum body consists of two layers and between them (interlayer) there is heating medium (water or anti-freeze fluid) which is circulated. This equipment is equipped with heating and temperature control device and its speed can be regulated steplessly with a frequency converter. The total operation time as well as automatic forward & backward rotation time, and the interval between the forward and backward operations can be set up. A water feeding device is provided to feed water or material during operation of the drum. A convenient clutch system can stop any one of the drums during operation at will. The observation window is made of fully transparent high-strength toughened glass so that the test conditions of the leather inside the drum can be observed all time.
Feature
Fully transparent toughened glass observation window.
Feeding device can be fed with water while the drum is in operation.
Dimension & Weight
|
Model |
AF57 Temperature-controlled Colorimetric Lab Drums |
|
|
AF57-1 |
AF57-2 |
|
|
Dimensions |
90*140*150cm |
90*245*150cm |
Key Specification
|
Model |
AF57 Temperature-controlled Colorimetric Lab Drums |
|
|
AF57-1 |
AF57-2 |
|
|
Drum quantity |
2 |
4 |
|
Volume |
2*10L |
4*10L |
|
Drum diameter |
370mm |
|
|
Drum width |
200 |
|
|
Speed |
0-25rpm |
|
|
Heating method |
Electronic heating |
|
|
Power supply |
AC220V, 50/60HZ |
|
ROSS Flexing Tester is suitable for testing the flexing performance of rubbers, soles, PU, PVC, TPR materials.
Taber Abrasion Tester is designed to determine the resistance of textiles, paper, paints, plywood, tiles, glass, natural rubber,etc.
Dupont Impact Tester is used to inspect the impact resistance of plastic test pieces, PVC test pieces and paint test pieces.
Compression And Deformation Tester is used for testing the compressive deformation amount, for the vulcanized rubber and thermoplastic rubber, at room temperature, high and low temperature conditions, in the case of a predetermined compression ratio, after a certain time.
Universal Tensile Strength Tester (single column) has a wide range of uses. It can test various materials and shoe soles, tires, rubber tubes, triangular tapes, plastic sheets, plastic sheets, packaging films, acrylic, FRP, ABS, EVA, PV and other finished products by changing different fixtures. The tensile strength, elongation, tearing, adhesive force, tensile stress, peeling force, shear force, adhesive force of rubber and metal of semi-finished product or dumbbell-shaped test piece.
This thickness gauge is mainly used to measure the thickness of vulcanized rubber and plastic products in cables, wires, soft insulation and sheath materials.

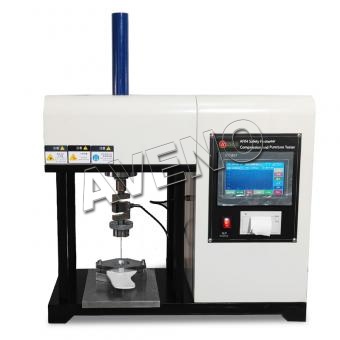

Press the toe cap at a constant rate through Safety Footwear Compression and Puncture Tester, until the pressure value reaches the specified value, measure the minimum height of the sculptured clay cylinder in the test toe cap, and use its size to evaluate the safety of the shoe or the compression resistance of the protective shoe toe.
Softness Tester is precise and durable with high accuracy, and is specially used to test the softness of leather, such as shoes, furniture, an indispensable instrument for testing various leather materials such as clothing.
