TEXTILE TEST EQUIPMENT

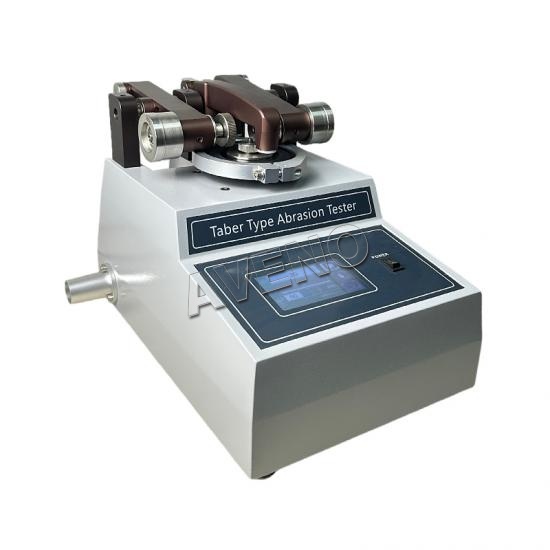

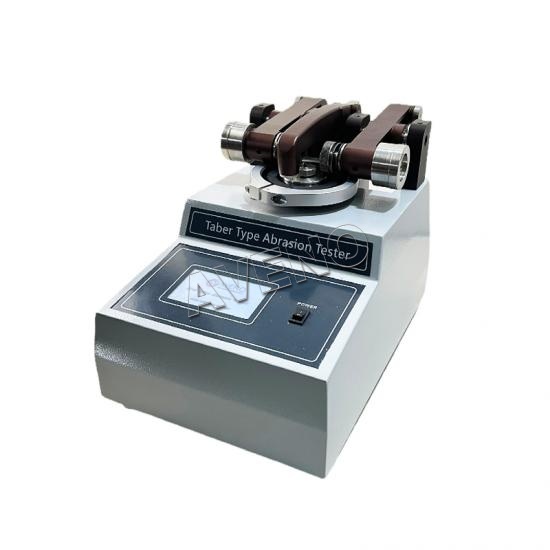

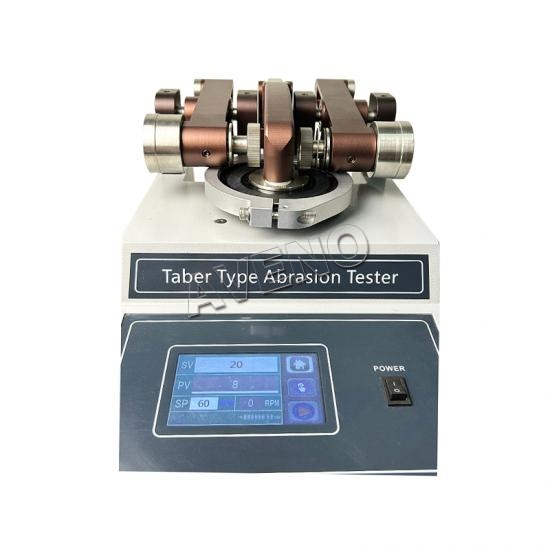

AF46 Taber Abrasion Tester

Taber Abrasion Tester is designed to determine the resistance of textiles, paper, paints, plywood, tiles, glass, natural rubber,etc.

  • Brand:

    AVENO
  • Item NO.:

    AF46
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

Taber Abrasion Tester is designed to determine the resistance of textiles, paper, paints, plywood, tiles, glass, natural rubber,etc.


Test Principle

Use grinding wheel and apply a certain weight on it and grinding. After the specified number of revolutions, take out the sample and observe its condition or compare the weight difference and record.


Standards

ASTM D1044, ASTM D3884, ASTM D1044, ASTM D 4060, DIN52347, DIN53109, DIN 53754, DIN 53799, ISO 5470-1, ISO 9352, TAPPI T476, JIS K7204, JIS A1453, JIS K6902, JIS K6964, JIS L1096


Dimension & Weight

Model

AF46-1

AF46-2

Dimension

53*32*31cm

53*60*31cm

Weight

18kg

25kg


Key Specification

Model

AF46-1

AF46-2

Test position

1position

2position

Control mode

LCD control

Rotation speed

(60 ± 2) r/min, (72 ± 2) r/min. (can be set)

Load

250g, 750g, 1000g

Counter

LCD, 0 ~ 999999

Wheels model

CS-5, CS-10F, CS-17, CS-32, CS-33, CS-35, H-10, H-18, H-22, H-38 (optional)

Power

AC220V, 50/60HZ


Standard Accessories

Model

AF46-Taber Abrasion Tester

250g weight

1set

750g weight

1set

Sample sticker

5pcs

Power line

1pc


Option Accessories

Model

AF46-Taber Abrasion Tester

1

Different size of wheels

2

Vacuum cleaner
