TEXTILE TEST EQUIPMENT

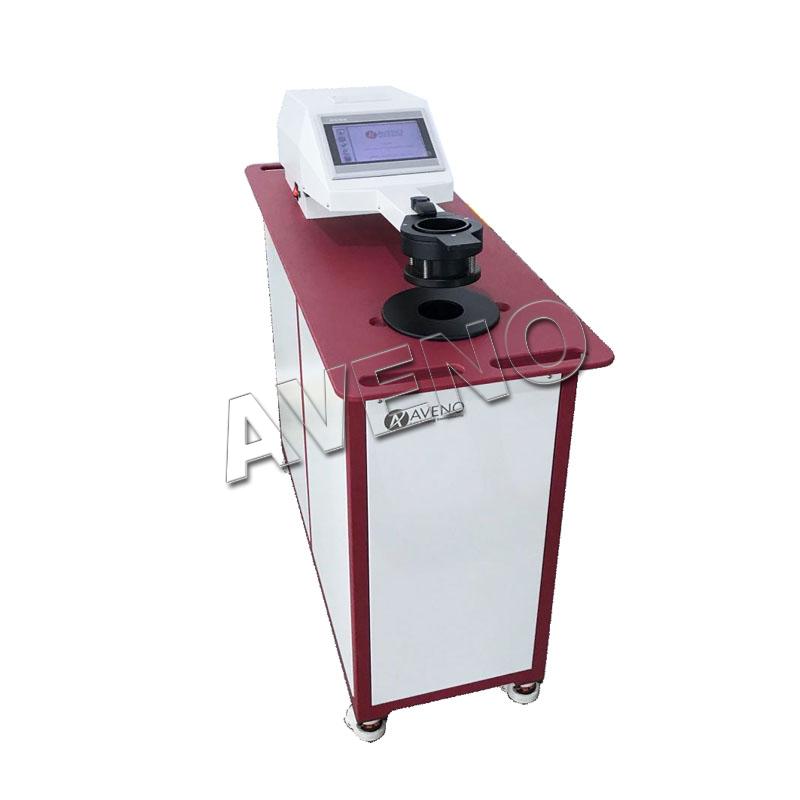

AG18A Textile Fabric Air Permeability Tester

Digital Air Permeability Tester is used to test the air permeability of special industrial fabrics, general fabrics, knitted fabrics, coated fabrics, non-woven fabrics and industrial filter paper.

  • Brand:

    AVENO
  • Item NO.:

    AG18A
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    7-10 days
  • Product Detail

Application

Digital Air Permeability Tester is used to test the air permeability of special industrial fabrics, general fabrics, knitted fabrics, coated fabrics, non-woven fabrics and industrial filter paper.


Feature

1. Use high-precision pressure and differential pressure sensor detection to ensure accurate data.

2. Micro-computer processing, test results are displayed directly, no need to manually check the table calculation.

3. The test unit can be switched freely according to the needs. (Build in mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s)

4. Color touch screen control, with high definition.

5. Can be operated online with the computer host computer, automatically draw real-time test data curve, easy to observe.

6. Manually change the nozzle.


Standards

GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.


Dimension & Weight

Model

AG18A Digital Air Permeability Tester

Dimension

107*67*108cm

Weight

75kg


Key Specification

Model

AG18A Digital Air Permeability Tester

Nozzle

Manually change nozzle

Test pressure

14000Pa

Permeability range

19999mm/s, ≤±2

Fabric thickness range

≤12mm

Test area

5cm2, 20cm2, 50cm2, 100cm2,

Ф50mm(≈19.6cm2), Ф70mm(≈38.5cm2)

Nozzle NO.

0

1

2

3

4

5

6

7

8

9

10

Nozzle Dia. (mm)

0.8

1.2

2

3

4

6

8

10

12

16

20

Printer

Thermosensitive micro printer

Power

AC220V, 50/60HZ


Standard Accessories

Model

AG18A Digital Air Permeability Tester

Operate software

1set

Calibration plate

1set

Nozzle

1set (11pcs)

PC cable

1pc

Power line

1pc

Griper

2sets (20cm²,38.3cm²)

Test area plate 1set

(10pcs)

Pressure samples ring

1pc

Air tube

1pc

Fuse

2pcs

Sealing sponge

1pc

English manual

1pc

Operate Video

1pc
