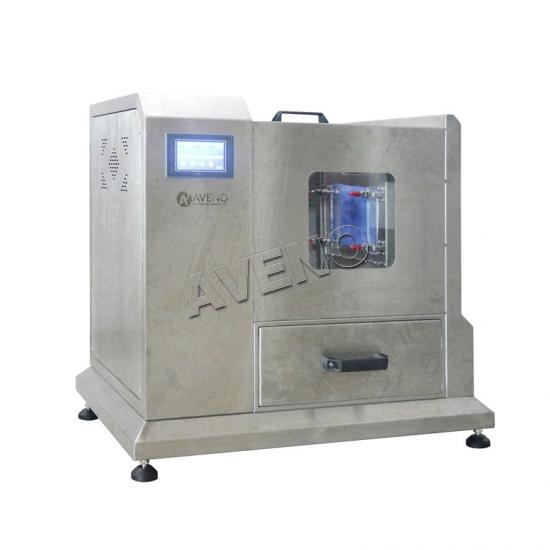

The water resistance tester is used to predict the ability of fabrics and other materials to resist rain penetration. It can measure the anti-penetration ability of fabrics and composite materials under water impact of different intensities.
Brand:
AVENOItem NO.:
AG22-2Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
The water resistance tester is used to predict the ability of fabrics and other materials to resist rain penetration. It can measure the anti-penetration ability of fabrics and composite materials under water impact of different intensities.
Standards
AATCC 35, GB/T 23321, ISO 22958.
Dimension & Weight
|
Model |
AG22- 2 Water resistance tester |
|
Dimensions |
80*56*75cm |
|
Weight |
50kg |
Key Specification
|
Model |
AG22- 2 Water resistance tester |
|
Control mode |
Touch screen control |
|
Sample size |
200×200mm |
|
Size of water - absorbing paper |
152×152mm |
|
Sample clip width |
152mm |
|
Sample clip distance |
165mm |
|
Sample clip size |
178×229mm |
|
Nozzle hole |
13pcs, Diameter: 0.99±0.013mm |
|
Nozzle to sample distance |
305mm |
|
Water pressure |
6kPa～24kPa, can be set |
|
Water temperature |
RT～50℃, can be set |
|
Power supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
AG22- 2 Water resistance tester |
|
Sample clamp |
1 Set |
|
Drain pipe |
1 Pc |
|
Spray nozzle baffle |
1 Pc |
|
Power line |
1 Pc |
|
English Operate manual |
1 Pc |
|
Operate video |
1 Pc |
|
Quality certification |
1 Pc |
