Brand:
AVENOItem NO.:
AG36Order(MOQ):
1Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication

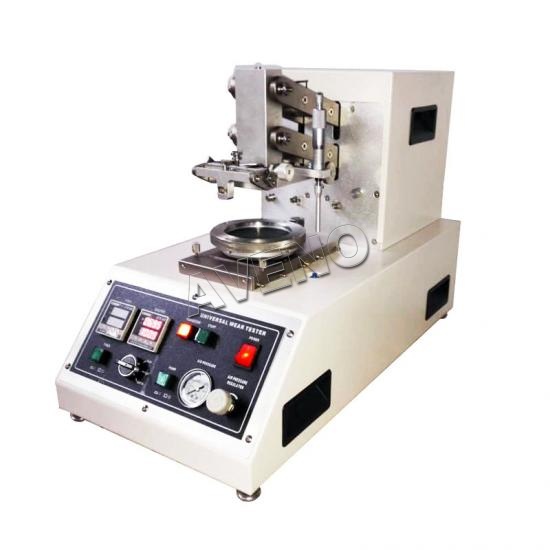

The Universal Wear Tester (UWT) is used to measure the wear resistance and abrasion resistance of various types of clothing, footwear and fabrics. It mainly measures the wear resistance of materials in flat state, creased state and bent state.
Standards
ASTM D3885, D3886, D3514, AATCC 119/120, JIS L1096, CNS 12915.
Dimension & Weight
|
Model |
AG36 Universal Wear Tester (UWT) |
|
Dimension |
34x66x47cm |
|
Weight |
80Kg |
Key Specification
|
Model |
AG36 Universal Wear Tester (UWT) |
|
Control mode |
LCD button control |
|
Test stroke |
1in (25.4mm) |
|
Test speed |
115±10r/115±10r/min |
|
Counting |
0~999 999 times, can be set |
|
Timing |
0~9 999min |
|
Power supply |
AC220V 50/60Hz |
Standard Accessories
|
Model |
AG36 Universal Wear Tester (UWT) |
|
Press weight |
5pcs |
|
Tension weight |
5pcs |
|
Micrometer calipers |
1set |
|
Flex abrasion test griper |
1set |
|
Flex abrasion blade |
1set |
|
Surface abrasion test griper |
1set |
|
Edge and fold abrasion test griper |
1set |
|
Flat abrasion (Frosting) and pilling test griper |
1set |
|
Power line |
1pc |
Option Accessories
|
Model |
AG36 Universal Wear Tester (UWT) |
|
1 |
ASTM D3514 photograph |
|
2 |
ASTM D3514 Elastomeric Base Pad and Friction Pad |
|
3 |
600A/320J sandpaper |
|
4 |
Rubber membrane |
