TEXTILE TEST EQUIPMENT

AG38 Fabric Stretch & Recovery Tester

Fabric Stretch & Recovery Tester is suitable for testing the elastic recovery performance of elastic fabrics in two ways (constant force value and fixed length).

  • Brand:

    AVENO
  • Item NO.:

    AG38
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-10days
  • Product Detail

Application

Fabric Stretch & Recovery Tester is suitable for testing the elastic recovery performance of elastic fabrics in two ways (constant force value and fixed length).


Principle

Constant force method: The upper end of a sample of a certain specification is clamped in the upper clamp, and the weight of the weight is suspended below the load of the test specimen after 4 times of loading.

Fixed length method: The upper and lower ends of the sample of a certain specification are respectively clamped in the upper and lower clamps, and the lower clamp is moved to hold the sample for a certain length and then kept for a certain period of time to measure the recovery performance of the sample.


Feature

1. Fixed force method: clamp the upper end of the sample in the upper fixture, lower end of sample hanging the load weight, loading 4 times, then test the recovery performance of sample.

2. Fixed length method: clamp the upper end and lower end of the sample in the upper and lower fixture, moving lower fixture to stretch a specimen for a certain length and keep a certain time, then check the recovery performance of sample.


Standards

ASTM D3107, ASTM D2594(option)


Dimension & Weight

Model

AG38 Fabric Stretch & Recovery Tester

Dimensions

70*120*50cm

Weight

35kg


Key Specification

Model

AG38 Fabric Stretch & Recovery Tester

Test Standard

ASTM D3107

ASTM D2594

Test position

3

Sample size

65mmx560mm

Load weight

3LB and 4LB

5LB and 10LB

Fixture width

6mm

140mm

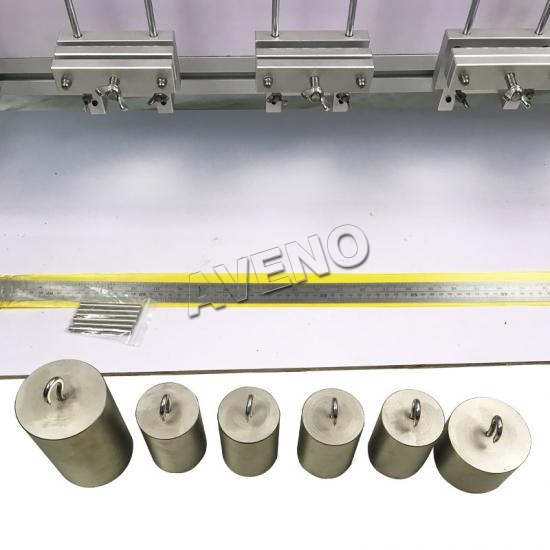

Standard Accessories

Model

AG38 Fabric Stretch & Recovery Tester

Load weight

(ASTM D3107 or 2594 option)

1set

Steel ruler

1pc

Hook pin

1set

Fixture for (ASTM D3107 or 2594)

1set


Option Accessories

Model

AG38 Fabric Stretch & Recovery Tester

1

Load weight

(ASTM D3107 / 2594)
