TEXTILE TEST EQUIPMENT

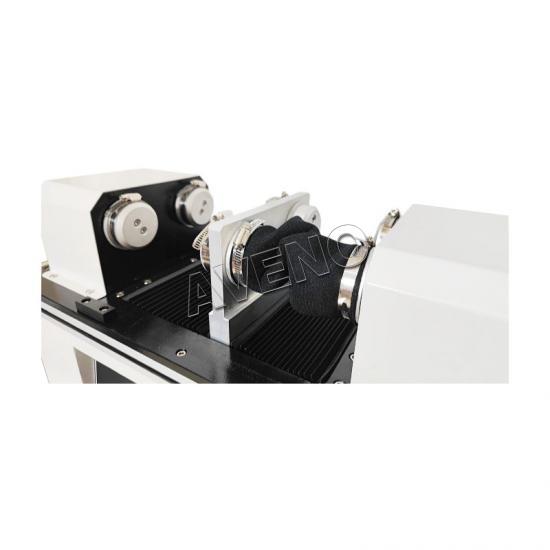

AG44 Crumple Flex Tester

Crumple Flex Tester is mainly used for reciprocating flexural strength testing of leather, coated fabrics and other materials.


  • Brand:

    AVENO
  • Item NO.:

    AG44
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

Crumple Flex Tester is mainly used for reciprocating flexural strength testing of leather, coated fabrics and other materials.


Standards

ISO 7854, ISO 8096, BS 3424, GB/T 12586


Test Principle

A strip of coated fabric was stitched into a cylindrical shape. The coated fabric cylinder is placed between the two discs and fixed. One of which reciprocates about 90° on its axis to twist the specimen, and the other disc reciprocates along its axis to compress Sample. The sample is evaluated for its resistance to flexing damage after a certain number of twists and compressions or when it's obviously damaged.


Dimensions & Weight

Model

AG44 Crumple Flex Tester

Dimensions

55*40*40cm

Weight

65Kg



Key Specification

Model

AG44 Crumple Flex Tester

Test positions

4 positions

Disc

Diameter Φ63.5mm, width 15mm

Rotation speed

200±10r/min (3.33Hz±0.17Hz)

Rotation angle

90 ° ± 2 °

Compression speed

152 ± 4r / min (2.53Hz ± 0.07Hz)

Compression stroke

70mm

Distance inside the cylinder flange

Max.180mm±3mm

Sample size

220mmx190mm, 1 pc for vertical and 1pc for horizontal

Sample stitching size

Cylindrical, length 190mm, inner diameter Φ64mm

Count

0~9999 times can be set

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AG44 Crumple Flex Tester

Clamper

4pcs

Cutting blade

1pc

Bolt driver

1pc

Power line

1pc
