TEXTILE TEST EQUIPMENT

AG51 Fabric Water-vapor Transmission Tester

Fabric Water-vapor Transmission Tester is used to test the water vapour transmission of various fabric and non-woven fabric for garment usage including bat wool, space cotton, etc.

  • Brand:

    AVENO
  • Item NO.:

    AG51
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

Fabric Water-vapor Transmission Tester is used to test the water vapour transmission of various fabric and non-woven fabric for garment usage including bat wool, space cotton, etc.


Standards

GB/T 12704, GB/T 21665, ASTM E90, ASTM E 96, JIS L1099, BS 7209


Feature of Martindale Abrasion Tester

  1. PID algorithm control temperature, small fluctuation, and prevent overshoot of temperature and humidity.

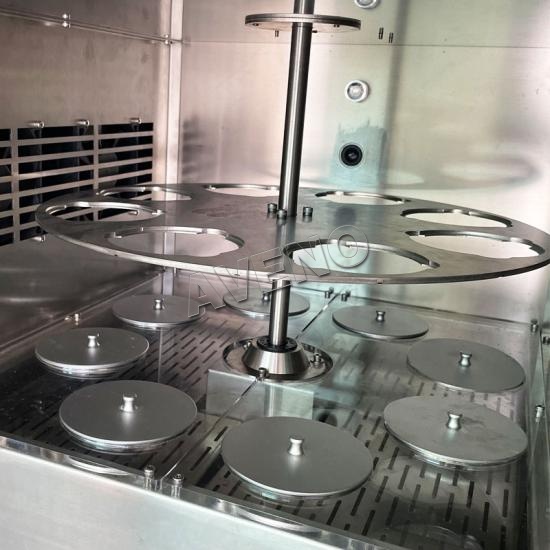

  2. Rotating specimen stand, rotating speed adjustable, the test is more well-distributed than the fixed test stand.


Dimension & Weight

Model

AG51-1

AG51-2

Dimension

74*67*120cm

105*67*170cm

Weight

200kg

220kg


Key Specification

Model

AG51-1

AG51-2

Test cups

8

16

Control mode

Color touch screen control

Temperature range

18-50, ±0.5 can be set

Humidity range

40-95%RH, ±1%RH can be set

Test chamber airflow velocity

0.1~0.8m/s

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AG51-Fabric Water-vapor Transmission Tester

Anhydrous calcium chloride

1 bottle

Measuring cup

1pc

Drain pipe

1pc

Moisture-permeable cups

8pcs

Mesh screen

2pc
