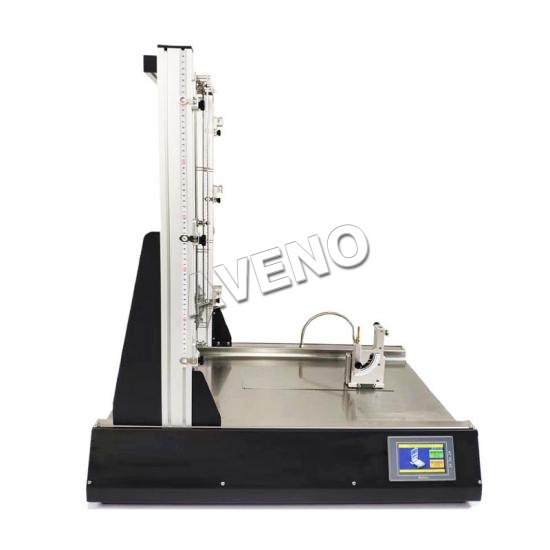

The Textile Vertical Flammability Tester is used to test the vertical flammability of various fabrics. This tester can select different bracket accessories according to different test standards.
Brand:
AVENOItem NO.:
AG65Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
The Textile Vertical Flammability Tester is used to test the vertical flammability of various fabrics. This tester can select different bracket accessories according to different test standards.
Standards
BS 5438, BS EN 532, 533, BS EN 1103, BS EN ISO 6940, 15025, EN ISO 6941, EN71, ISO 10047, DIN 53438, GB/T 5455, GB/T 5456, 8745, GB/T 8746
Dimensions & Weight
|
Model |
AG65 Textile Vertical Flammability Tester |
|
Dimension |
80x55x66cm |
|
Weight |
45Kg |
Key Specification
|
Model |
AG65 Textile Vertical Flammability Tester |
|
Control model |
Touch screen control |
|
Ignition time setting range |
0~99.99s |
|
Combustion timing range |
0~999.9s |
|
Nozzle angle |
Angle to horizontal line 0 °/ 30 °/ 90 °adjustable |
|
Test flame height |
20mm/40mm |
|
U-shaped fixture inner frame |
80mmx600mm |
|
U-shaped fixture marking line |
adjustable |
|
Burning gases |
Butane gas |
|
Power supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
AG65 Textile Vertical Flammability Tester |
|
Griper |
1 set |
|
Gas supply device |
1 set |
|
Flame ruler |
1 pc |
|
Cotton thread |
1 roll |
|
Power line |
1 pc |
