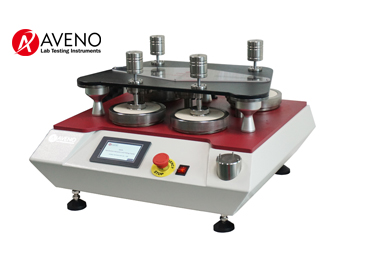

Martindale Abrasion and Pilling Tester Introduction
Mar 21, 2021

Martindale Abrasion and Pilling Tester is suitable for the test of the degree of pilling of fabrics. Its principle: the circular sample and the fabric of the same material are rubbed with the Lissajous pattern motion track under a given pressure. After reaching the specified number of revolutions, the sample is evaluated for pilling. Ball level. It is also suitable for fabric abrasion resistance test. The principle: under a certain pressure, the circular fabric sample rubs against the standard abrasive according to the movement track of the Lissajous curve, causing the sample to be damaged, and the sample is damaged. The number of wear resistance indicates the wear resistance of the fabric.

Key Specification

  • Control mode PLC control with touch screen display
  • Counter range 0~999999 times
  • The maximum dynamic range Cross range 60.5±0.5mm   Direction 24±0.5mm
  • Pressure Weight

a Holder 198 ±2g

b Cloth sample weight 395 ±2g

c Furniture parts sample weight 594 ±2g

d B type clamp 155 ±1 g

e Stainless steel butterfly 260±1g

  • Rubbing Diameter

a Rubbing Head A: 198g friction head Φ28.65±0.05mm, Pressurized gravity 12Kpa

b Rubbing Head B: 155g friction head Φ90±0.10mm, Pressurized gravity 9Kpa

  • Friction relative speed: 50±2r/min, can be adjust
  • sample pressing hammer weight: 2385±10
  • Power Supply: AC220V, 50/60HZ
