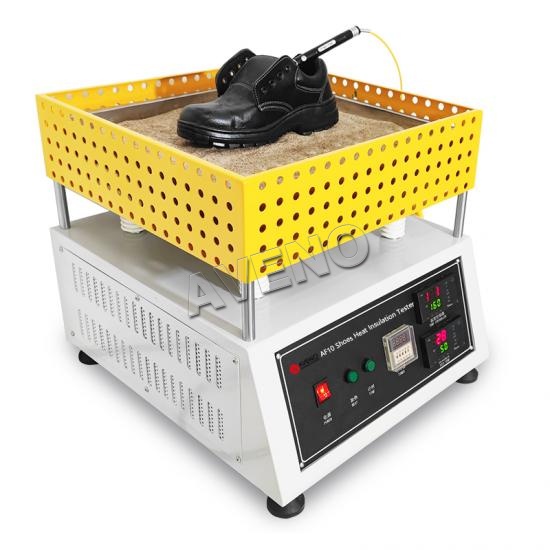

The shoe insulation tester is used to measure the thermal insulation performance of the entire shoe. The entire shoe is placed on a heating plate at a specified temperature for a certain period of time to check the temperature rise inside the shoe.
Brand:
AVENOItem NO.:
AF10Payment:
T/T, L/CShipping Port:
Xiamen portLead Time：
3-7daysApplication
The shoe insulation tester is used to measure the thermal insulation performance of the entire shoe. The entire shoe is placed on a heating plate at a specified temperature for a certain period of time to check the temperature rise inside the shoe.
Standards
ISO 20344 5.12
Dimension & Weight
|
Model |
Shoes Heat Insulation Tester |
|
Dimensions |
60*60*35cm |
|
Weight |
35kg |
Key Specification
|
Model |
Shoes Heat Insulation Tester |
|
Sand Bath Size |
(40±2) cm × (40±2) cm, height 8cm |
|
Sand Granular Size |
0.3~1.0mm |
|
Steel ball |
Φ5mm stainess steel, total weight 4kg, used for heating transfer |
|
Heating Power |
2500W |
|
Power |
AC220V, 500HZ |
Standard Accessories
|
Model |
Shoes Heat Insulation Tester |
|
Temperature probe |
1set |
|
φ5mm steel balls |
4kg |
|
Power line |
1pc |
