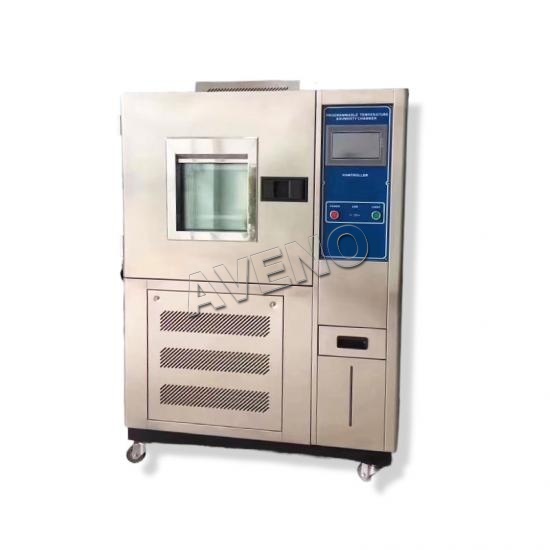

This Environmental Chamber Temperature And Humidity Test Chamber can simulate various temperature and humidity environments, and is suitable for testing products such as electronics, electrical appliances, food, automobiles, rubber, plastic, metal, etc.
Brand:
AVENOItem NO.:
AE01Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
The Temperature And Humidity Test Chamber can simulate various temperature and humidity environments, and is suitable for testing products such as electronics, electrical appliances, food, automobiles, rubber, plastic, metal, etc.
Test space option of The Temperature And Humidity Test Chamber
|
Model |
AE01 Temperature & Humidity Test Chamber |
|||||
|
Capacity |
80L |
150L |
225L |
408L |
800L |
1000L |
|
Inside dimension (W×H×D, cm) |
40×50×40 |
50×60×50 |
50×75×60 |
60×85×80 |
100×100×800 |
100×100×100 |
|
Outside dimension (W×H×D, cm) |
95×136×94 |
100×146×104 |
100×161×117 |
110×171×137 |
150×186×137 |
150×186×157 |
Key Specification
|
Model |
AE01 Temperature & Humidity Test Chamber |
|
Temperature range |
-20℃～+150℃,-40℃～+150℃,-60℃～+150℃ (can be custom made) |
|
Humidity range |
20%～98%RH, can be set |
|
Temperature fluctuation |
≤±0.5℃ |
|
Humidity fluctuation |
≤ ±1.0%RH |
|
Temperature uniformity |
≤±1.0℃ |
|
Humidity uniformity |
≤ ±2.0%RH |
|
Accuracy |
Temperature: ±0.01℃ Humidity: ±0.1%RH |
|
Heating speed |
About 4.0℃/min |
|
Cooling rate |
About 1.2℃/min |
|
Type of water supply |
Periodical feeding |
|
Material of inner surface |
SUS304 mirror finished stainless steel |
|
Material of outside surface |
baking finish surface or SUS304 stainless steel, option |
Standard Accessories
|
Model |
AE01 Temperature & Humidity Test Chamber |
|
Stainless steel adjustable shelf |
2pc |
Martindale Abrasion Tester is suitable for the test of the degree of abrasion and pilling of fabrics. It is also suitable for fabric abrasion resistance test. Martindale Abrasion Tester is widely used in textile testing.
Hydrostatic Head Tester is used to measure the impermeability of various fabrics that have undergone water-repellent treatment.
Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not.
ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials.
Spray Rating Tester is used to determine the surface wetting resistance of fabrics.
Bursting Strength Tester is suitable for various textiles, non-woven fabrics, leather and other materials, when the force is applied in all directions of warp and weft at the same time (elastic diaphragm method), the performance measurement of expansion force and degree of expansion.
0.01g Balance with durable stainless steel scale, weighing, peeling, counting, unit conversion.
Button Snap Pull Tester is used to test whether the buttons sewn on the clothes can withstand the strength required by the standard.
