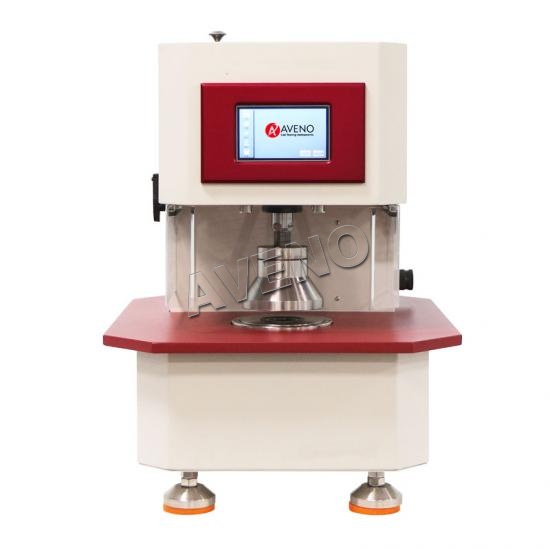

Fully automatic Bursting strength testing machine is used for testing the bursting strength of various types of paper, and can also be used for non paper materials such as silk and cotton cloth.
Brand:
AVENOItem NO.:
AG10BPayment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
Fully automatic Bursting strength testing machine is used for testing the bursting strength of various types of paper, and can also be used for non paper materials such as silk and cotton cloth.
Feature of Fully Automatic Bursting Strength Testing Machine
1. Touch screen control, Chinese and English menus, human-machine dialogue mode, easy to operate.
2. Built in thermal printer for quick on-site printing of test results.
3. It can perform report statistics, real-time display of test curves, and intuitive analysis.
4. High precision sensor with good linearity and strong stability.
5. Pneumatic clamping facilitates sample loading and unloading, improving testing efficiency.
Standards
JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210, ISO2759-2001, TAPPI T403, GB/T1539
Dimensions & Weight
|
Model |
AG10B Fully automatic Burstingstrength testing machine |
|
Dimension |
40*46*53 |
|
Weight |
40kg |
Key Specification
|
Model |
AG10B Fully automatic Burstingstrength testing machine |
|
Capacity |
250-5600kpa |
|
Operation mode |
Full-automatic |
|
Display method |
LCD |
|
Glycerine pressure speed |
High pressure type, 170±10ml/min |
|
Sample holding force |
>690kpa, automatic clamping and release |
|
Power supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
AG10B Fully automatic Burstingstrength testing machine |
|
Rubber film |
1pc |
|
Spanner |
1pc |
|
Calibration film |
10pcs |
