TEXTILE TEST EQUIPMENT

AG11-3 Digital Tearing Tester

Digital Tearing Tester is suitable for the determination of tear resistance of various woven fabrics.
  • Brand:

    AVENO
  • Item NO.:

    AG11-3
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

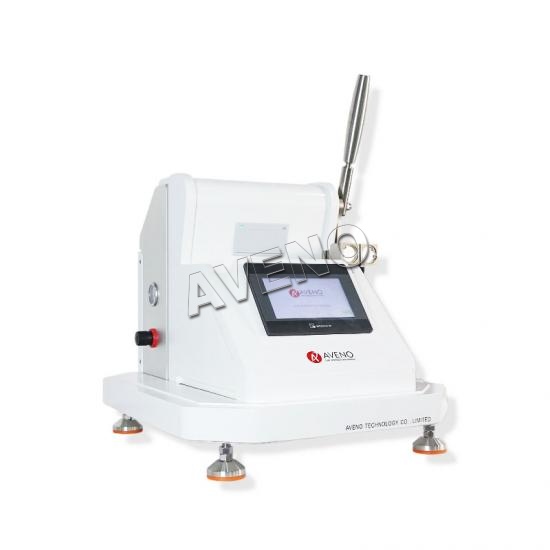

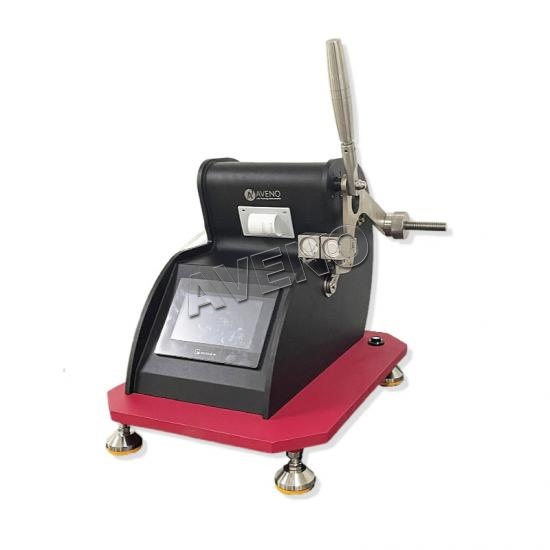

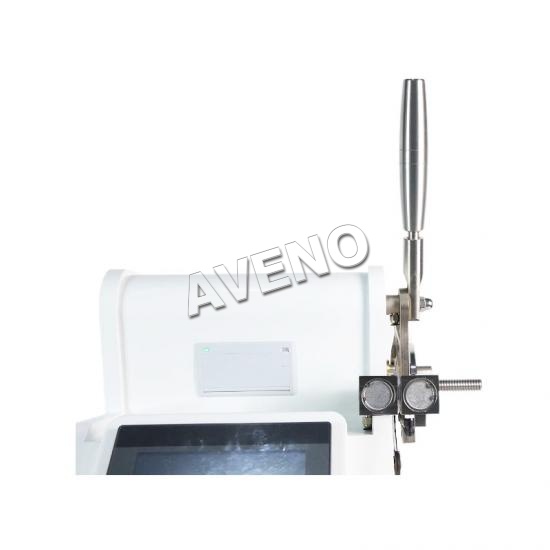

Digital Tearing Tester adopts color touch screen display, sample pneumatic clamping, automatic cutting incision, automatic release of pendulum, etc. It is suitable for the determination of tear resistance of various woven fabrics. It can also be used to measure the tear resistance of thick paper, plastic sheeting, electrical tape, etc.

Standards

  • Textile: GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149
  • Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444
  • Plastic: GB/T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
  • Non-woven: ASTM D5734, WSP 100.1.


Dimensions & Weight

Model

AG11-3 Digital Elmendorf Tearing Tester

Dimension

400 x 210 x 395mm

Weight

75Kg


Key Specification

Model

AG11-3 Digital Elmendorf Tearing Tester

Range of Tearing Force

A: 16N

B: 32N

C: 64N

D: 128N

 Accuracy

±0.2 F·S

Cut Length

20±0.1mm

Rip Length

43mm

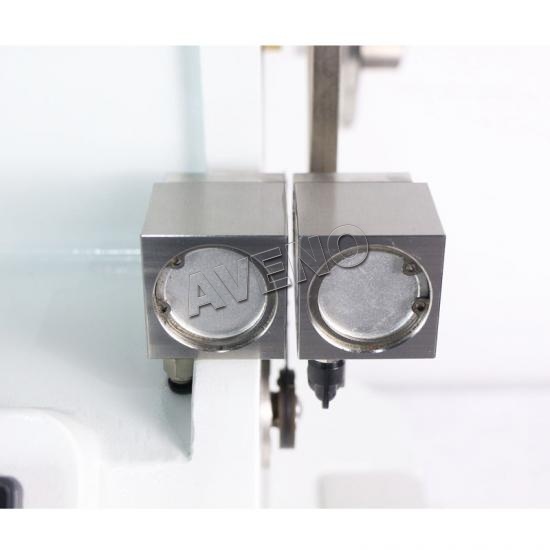

Sample clamping method

Pneumatic

Sample size

100 x 63mm (LxW)

Power supply

AC 220V, 50/60HZ


Standard Accessories

Model

AG11-3 Digital Elmendorf Tearing Tester

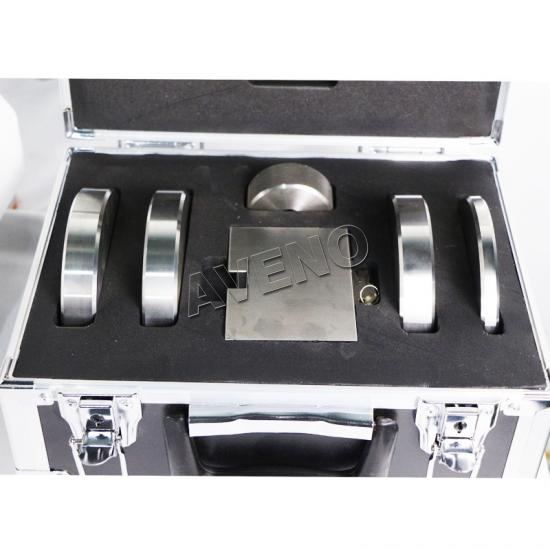

Load

4sets (A, B, C and D)

Sample template

1pc

English operation software

1pc

Cable connect to PC

1set


Option Accessories

Model

AG11-3 Digital Elmendorf Tearing Tester

1

Desk Top Computer (HP)
