TEXTILE TEST EQUIPMENT

AG24 ASTM D1777 ELectronic Thickness Tester

ELectronic Thickness Tester is mainly used to measure the thickness of various textiles, textile products, non-woven fabrics and other materials under different pressures, and can also be used to measure the thickness of other uniform thin materials.

  • Brand:

    AVENO
  • Item NO.:

    AG24
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

ELectronic Thickness Tester is mainly used to measure the thickness of various textiles, textile products, non-woven fabrics and other materials under different pressures, and can also be used to measure the thickness of other uniform thin materials.


Standards

ISO 5084, ISO 9073, ISO 9863, FZ/T 01003 ASTM D1777, GB/T 3820, GB/T 24218.2.


Dimension & Weight

Model

AG24 ELectronic Thickness Tester

Dimension

25*45*45cm

Weight

30kg


Key Specification

Model

AG24 ELectronic Thickness Tester

Control mode

Touch screen control

Measuring range

25mm, 50mm optional

Precision

0.01mm

Pressing time

1999s, can be set

Presser foot

Diameter

Φ11.28mm

Φ50.48mm

Φ56.42mm

Φ112.84mm

Acreage

100mm2

2000mm2

2500mm2

10000mm2

Power supply

AC220V, 50/60HZ

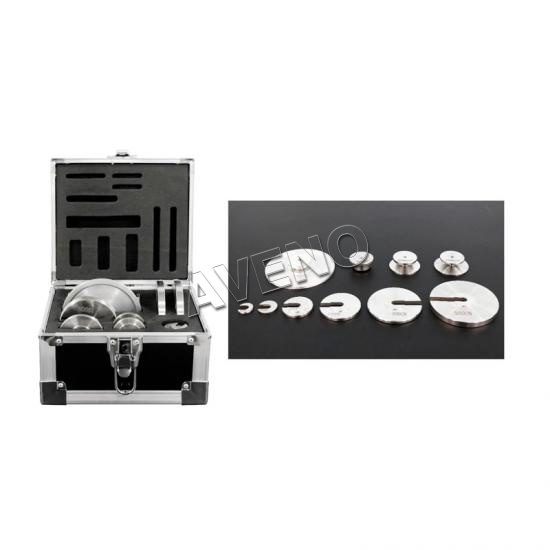

Standard Accessories

Model

AG24 ELectronic Thickness Tester

5cN Weight

1pc

10cN Weight

2pcs

50cN Weight

2pcs

100cN Weight

1pc

200cN Weight

2pcs

500cN Weight

2pcs

Power line

1pc
