TEXTILE TEST EQUIPMENT

AG32 Horizontal Flammability Tester

The horizontal flammability tester is mainly used to determine the horizontal combustion performance of textiles and is widely used in automotive interior materials.


  • Brand:

    AVENO
  • Item NO.:

    AG32
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3-7days
  • Product Detail

Application

The horizontal flammability tester is mainly used to determine the horizontal combustion performance of textiles and is widely used in automotive interior materials.


Standards

ISO 3795, ASTM D5153, JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW 3232.


Feature of Martindale Abrasion Tester

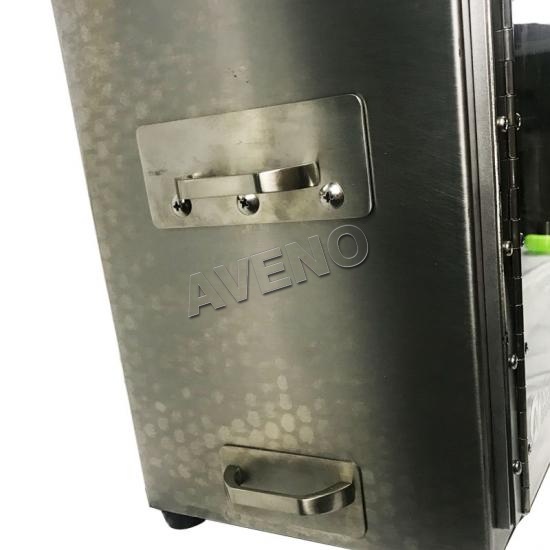

1. Test chamber and fixture use SUS304 stainless steel, with toughened glass transparent window, neat and convenient to observe the sample changes during testing.

2. Circulation ventilation system for long-term cooling of the instrument to ensure stable internal environment.

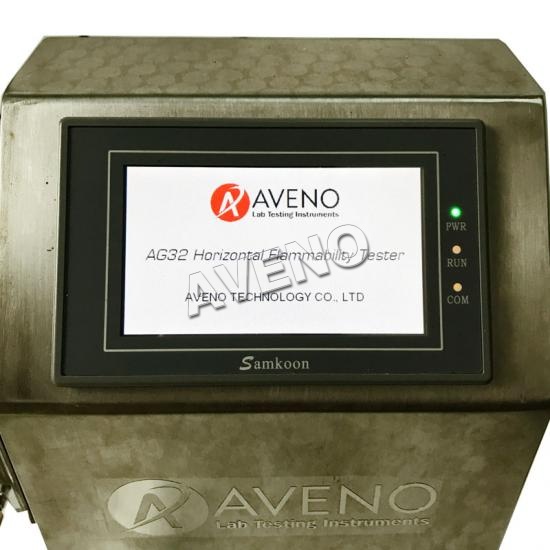

3. Automatic timing, when burning reach mark line, automatic stop time recording by sensor, exclude errors caused by human observation.

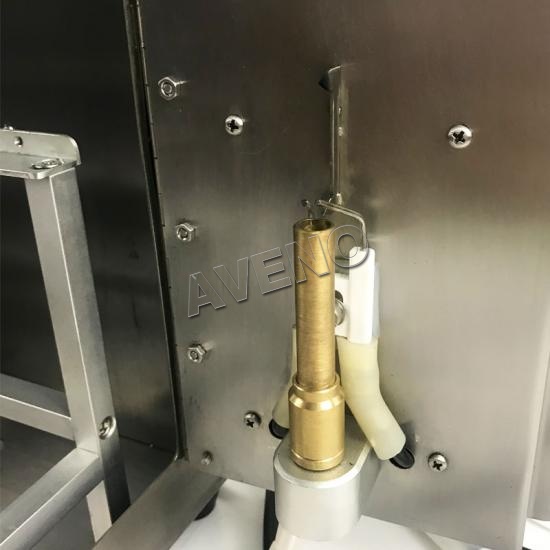

4. Ignition device with position induction, automatic sensing sample position then start the test.


Dimension & Weight

Model

AG32 Horizontal Flammability Tester

Dimension

57*26*37cm

Weight

28kg


Key Specification

Model

AG32 Horizontal Flammability Tester

Test chamber dimension

381*203*356mm

(with 10 bottom vent, φ19mm)

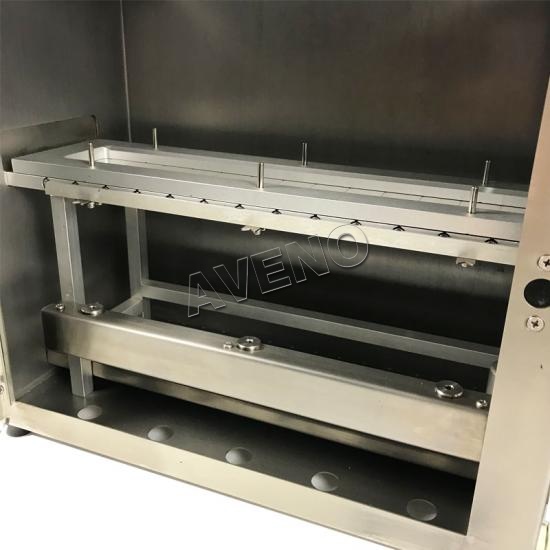

Sample fixture

U sharp, inner size 330*50mm

Sample size

356*100mm, thickness 13mm

Ignition height

19mm

Nozzle internal diameter

9.5mm

Nozzle angle

Vertical

Flame height

38mm

Marking line distance

254mm

Power supply

AC220V, 50/60HZ


Standard Accessories

Model

AG32 Horizontal Flammability Tester

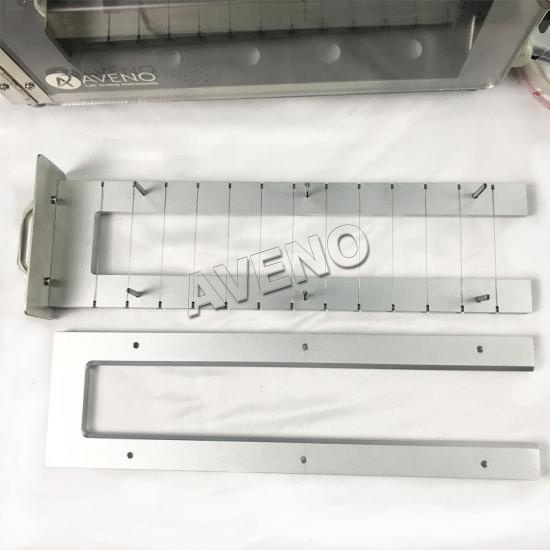

Sample holder

1pc

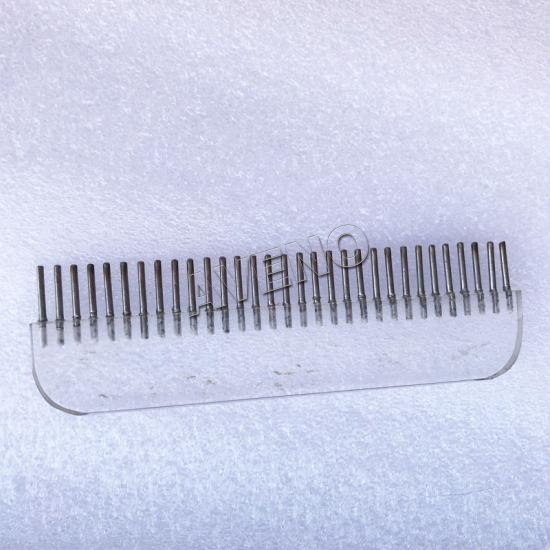

Metal comb

1pc

Gas feed device

1set

Power line

1pc
