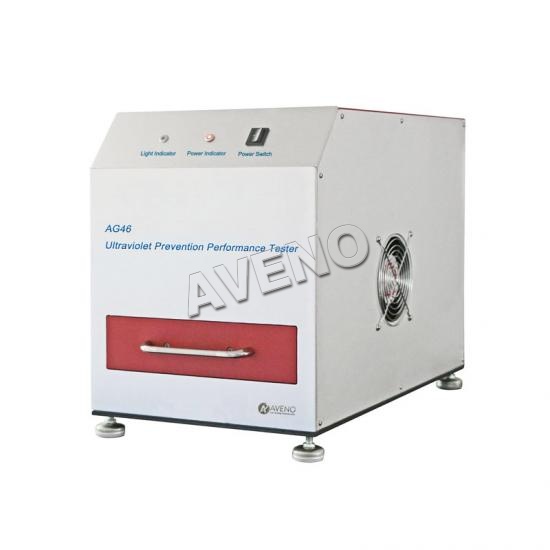

Textile UV protection performance tester is used to determine the UV transmittance and UV protection performance of textiles. The UV protection factor (UPF) of textiles can be directly obtained through the test.
Brand:
AVENOItem NO.:
AG46Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
Textile Ultraviolet Prevention Performance Tester(UPF Tester) is used to determine the UV transmittance and UV protection performance of textiles. The UV protection factor (UPF) of textiles can be directly obtained through the test.
Standards
GB/T18830, AATCC 183, AS/NZS4399, BS 7914, PREN 13758
Dimensions & Weight
|
Model |
AG46 Textile UV protection performance tester |
|
Dimension |
30*50*40cm |
|
Weight |
25kg |
Key Specification
|
Model |
AG46 Textile UV protection performance tester |
|
Measure range |
Transmittance: 0—100%±0.01％, UPF: 0—100 |
|
Wavelength range |
280～400nm±0.5nm |
|
Wavelength repeatability |
0.25nm |
|
Data interval |
1nm—5nm, adjustable |
|
Slit-width |
≤5nm |
|
Sample beam diameter |
10mm |
|
Power supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
AG46 Textile UV protection performance tester |
|
Operate software |
1set |
|
Serial port connection line |
1pc |
|
Protective tube |
2pcs |
|
Power line |
1pc |
|
English Operate manual |
1pc |
|
Operate video |
1pc |
|
Quality certification |
1pc |
Martindale Abrasion Tester is suitable for the test of the degree of abrasion and pilling of fabrics. It is also suitable for fabric abrasion resistance test. Martindale Abrasion Tester is widely used in textile testing.
Hydrostatic Head Tester is used to measure the impermeability of various fabrics that have undergone water-repellent treatment.
Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not.
ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials.
Spray Rating Tester is used to determine the surface wetting resistance of fabrics.
Bursting Strength Tester is suitable for various textiles, non-woven fabrics, leather and other materials, when the force is applied in all directions of warp and weft at the same time (elastic diaphragm method), the performance measurement of expansion force and degree of expansion.
0.01g Balance with durable stainless steel scale, weighing, peeling, counting, unit conversion.
Button Snap Pull Tester is used to test whether the buttons sewn on the clothes can withstand the strength required by the standard.
