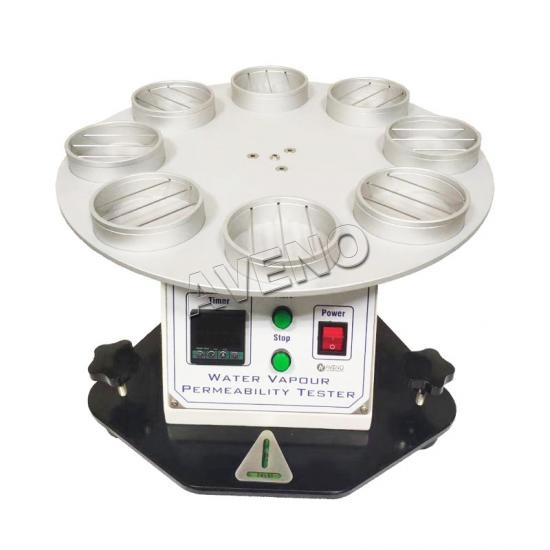

Fabric water vapor permeability tester is mainly used to test the water vapor permeability of various fabrics and non-woven fabrics.
Brand:
AVENOItem NO.:
AG51BPayment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
Fabric water vapor permeability tester is mainly used to test the water vapor permeability of various fabrics and non-woven fabrics.
Standards
BS 7209, BS 3424
Dimension & Weight
|
Model |
Fabric water vapor permeability tester |
|
Dimension |
20Kg |
|
Weight |
220V, 50/60HZ |
Key Specification
|
Model |
Fabric water vapor permeability tester |
|
Sample |
3 pcs, φ96mm |
|
Test vessel internal dimensions |
83mm in diameter and 18.5mm in depth |
|
Test dish assembly weight |
120g~150g/group (with water) |
|
Test dish filled with water |
46cm^3 |
|
Distance between Water surface and sample |
10±1mm |
|
Turntable |
Aluminum, Test tube placement center circle diameter P.C.D 305mm |
|
Turntable speed |
About 2r/min |
|
Testing time |
Can be set |
|
Timer |
LCD liquid crystal display, 0~9999h can be set |
|
Dimension |
44x45x33cm |
Martindale Abrasion Tester is suitable for the test of the degree of abrasion and pilling of fabrics. It is also suitable for fabric abrasion resistance test. Martindale Abrasion Tester is widely used in textile testing.
Hydrostatic Head Tester is used to measure the impermeability of various fabrics that have undergone water-repellent treatment.
Zipper Fatigue Tester is suitable for testing zipper under the action of horizontal and vertical tension can bear the prescribed number of reciprocating drive operation or not.
ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials.
Spray Rating Tester is used to determine the surface wetting resistance of fabrics.
Bursting Strength Tester is suitable for various textiles, non-woven fabrics, leather and other materials, when the force is applied in all directions of warp and weft at the same time (elastic diaphragm method), the performance measurement of expansion force and degree of expansion.
0.01g Balance with durable stainless steel scale, weighing, peeling, counting, unit conversion.
Button Snap Pull Tester is used to test whether the buttons sewn on the clothes can withstand the strength required by the standard.
